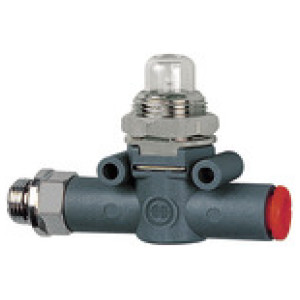

Prikazovalnik tlaka lineonline, z navojem - , G 3/8, za Ø 8
SKU: 106789RIE
EAN: 9068112
Pressure display »lineonline«, Thread (inlet) - hose (outlet), G 3/8, for hose Ø 8 mm, Operating pressure 2 - 10 bar
When there is no pressure, the clear bell looks empty.
When there is pressure, a red signal appears.
Šifra | Navoj | Za cevi Ø [mm] | I [mm] | B [mm] | A [mm] | Zaloga | Cena | Nakup | Natisni |
---|---|---|---|---|---|---|---|---|---|
106788RIE | G 1/4 | 8 | 18.7 | 41.0 | 70.6 | Čas dobave: Predvidoma 3 - 5 dni | 35,38 € | ||
106785RIE | G 1/8 | 6 | 14.6 | 37.0 | 58.5 | Čas dobave: Predvidoma 3 - 5 dni | 32,38 € | ||
106787RIE | G 1/4 | 6 | 14.6 | 37.0 | 61.5 | Čas dobave: Predvidoma 3 - 5 dni | 32,85 € | ||
106786RIE | G 1/8 | 8 | 18.7 | 41.0 | 66.2 | Čas dobave: Predvidoma 3 - 5 dni | 33,49 € | ||
106789RIE | G 3/8 | 8 | 18.7 | 41.0 | 72.2 | Čas dobave: Predvidoma 3 - 5 dni | 36,82 € |
Opis
Pressure display »lineonline«, Thread (inlet) - hose (outlet), G 3/8, for hose Ø 8 mm, Operating pressure 2 - 10 bar
When there is no pressure, the clear bell looks empty.
When there is pressure, a red signal appears.
Tehnični podatki in specifikacije
Min. temperaturno območje [°C] | -20 |
Min. obratovalni tlak [bar] | 2 |
Max. obratovalni tlak [bar] | 10 |
Max. temperaturno območje [°C] | 60 |
Tesnilo | NBR |
Telo | Technopolymer |
Notranji deli | Nickel-plated brass, brass, technopolymer, stainless steel |

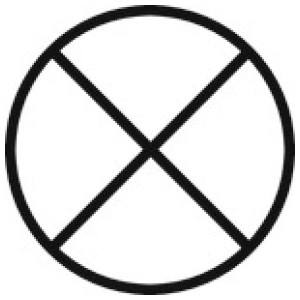

Pnevmatski simboli | On housing |
Navoj | G 3/8 |
Za cevi Ø [mm] | 8 |

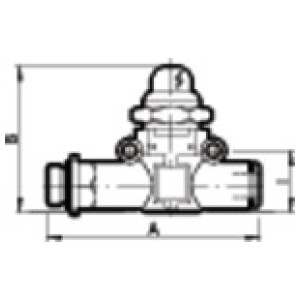

A [mm] | 72.2 |
B [mm] | 41.0 |
I [mm] | 18.7 |
