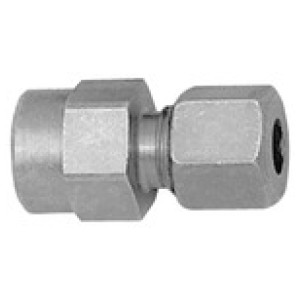

Priključek za manometer, G 1/2 i., zunanji premer za cev Ø 10
SKU: 102639RIE
EAN: 4047322166935
Pressure gauge- screw connection, G 1/2 i., Pipe exterior Ø 10 mm, PN max. 630 bar, AF1 22, AF2 27, galvanised steel
Pressure gauge fitting, parallel female thread, heavy type
Čas dobave 3 - 5 dni
9,46 €
| Šifra | O.D. cev [mm] | a/f 1 [mm] | L1 [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|
| 102637RIE | 6 | 17 | 46.0 | Čas dobave 3 - 5 dni | 9,46 € |  | |
| 102640RIE | 12 | 24 | 47.0 | Čas dobave 3 - 5 dni | 10,43 € | | |
| 102639RIE | 10 | 22 | 47.0 | Čas dobave 3 - 5 dni | 9,46 € | | |
| 102638RIE | 8 | 19 | 46.0 | Čas dobave 3 - 5 dni | 9,46 € | |
Opis
Pressure gauge- screw connection, G 1/2 i., Pipe exterior Ø 10 mm, PN max. 630 bar, AF1 22, AF2 27, galvanised steel
Pressure gauge fitting, parallel female thread, heavy type
Tehnični podatki in specifikacije

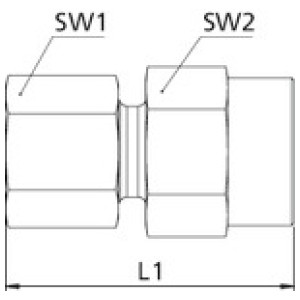

| Material | Galvanised steel (DIN 2353) |
| Navoj | G 1/2 |
| O.D. cev [mm] | 10 |
| L1 [mm] | 47.0 |
| a/f 1 [mm] | 22 |
| a/f 2 [mm] | 27 |
| PN [bar] | 630 |
