Priključek za manometer, G 1/4 i., zunanji premer za cev Ø 6
SKU: 102633RIE
EAN: 4047322166874

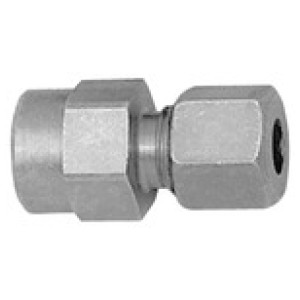

Pressure gauge- screw connection, G 1/4 i., Pipe exterior Ø 6 mm, PN max. 315 bar, AF1 14, AF2 19, galvanised steel
Pressure gauge fitting, parallel female thread, light type
Čas dobave 3 - 5 dni
4,79 €

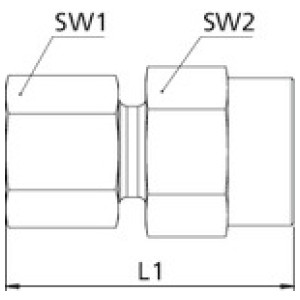

| Šifra | O.D. cev [mm] | a/f 1 [mm] | L1 [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|
| 102636RIE | 12 | 22 | 38.0 | Čas dobave 3 - 5 dni | 6,08 € |  | |
| 102633RIE | 6 | 14 | 37.0 | Čas dobave 3 - 5 dni | 4,79 € | | |
| 102634RIE | 8 | 17 | 37.0 | Čas dobave 3 - 5 dni | 4,79 € | | |
| 102635RIE | 10 | 19 | 38.0 | Čas dobave 3 - 5 dni | 5,62 € | |
Opis
Pressure gauge- screw connection, G 1/4 i., Pipe exterior Ø 6 mm, PN max. 315 bar, AF1 14, AF2 19, galvanised steel
Pressure gauge fitting, parallel female thread, light type
Tehnični podatki in specifikacije
| Material | Galvanised steel (DIN 2353) |
| Navoj | G 1/4 |
| O.D. cev [mm] | 6 |
| L1 [mm] | 37.0 |
| a/f 1 [mm] | 14 |
| a/f 2 [mm] | 19 |
| PN [bar] | 315 |
