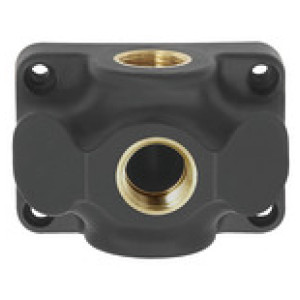

Priključna omarica, vhod G 3/4, priključek 1 x G 1/2
SKU: 112616RIE
EAN: 4047322401555
End distributor,, Input G 3/4, Connection 1 x G 1/2, operat.pressure (air/water) max. 15 bar, ambient temp. 1 °C to 50 °CMade of plastic PA6 GF 30.
End and through distributor sockets made of high strength, glass fibre reinforced plastic (PA6 GF 30) with large range of applications.
Optionally 1 or up to 3 connection options as well as 2 thread sizes for internal and external threads (cannot be combined). For vertical carrying of media.
Universal distributor socket with up to 5 connection options. Suitable for vertical and/or horizontal carrying of media or the secure connection
(avoidance of existing components) of pressure reducer or maintenance device, for example.
All distributor sockets have a durable brass threaded insert, whose shape secures it against rotation and against axial shift due to its shape.
Suitable for media compressed air (ambient temperature -10 °C to 50 °C) or water (ambient temperature 1 °C to 50 °C). Drilling diagram dimensions
are identical for all distributor sockets, so a simpler and more flexible exchange between end, through and universal distributor sockets is ensured.
Caution:
Note that the distributor sockets should not be installed in danges zones. Danger zones are, for example, transport routes, escape routes, etc.
| Šifra | Dovodni navoj | Priključni navoj | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|
| 112613RIE | G 1/2 | 1 x G 1/2 | Čas dobave: Predvidoma 3 - 5 dni | 24,06 € |  | |
| 112615RIE | G 1/2 | 3 x G 1/2 | Čas dobave: Predvidoma 3 - 5 dni | 36,71 € | | |
| 112617RIE | G 3/4 | 2 x G 1/2 | Čas dobave: Predvidoma 3 - 5 dni | 52,31 € | | |
| 112614RIE | G 1/2 | 2 x G 1/2 | Čas dobave: Predvidoma 3 - 5 dni | 30,84 € | | |
| 112618RIE | G 3/4 | 3 x G 1/2 | Čas dobave: Predvidoma 3 - 5 dni | 56,89 € | | |
| 112616RIE | G 3/4 | 1 x G 1/2 | Čas dobave: Predvidoma 3 - 5 dni | 46,57 € | |
Opis
Made of plastic PA6 GF 30.
End and through distributor sockets made of high strength, glass fibre reinforced plastic (PA6 GF 30) with large range of applications.
Optionally 1 or up to 3 connection options as well as 2 thread sizes for internal and external threads (cannot be combined). For vertical carrying of media.
Universal distributor socket with up to 5 connection options. Suitable for vertical and/or horizontal carrying of media or the secure connection
(avoidance of existing components) of pressure reducer or maintenance device, for example.
All distributor sockets have a durable brass threaded insert, whose shape secures it against rotation and against axial shift due to its shape.
Suitable for media compressed air (ambient temperature -10 °C to 50 °C) or water (ambient temperature 1 °C to 50 °C). Drilling diagram dimensions
are identical for all distributor sockets, so a simpler and more flexible exchange between end, through and universal distributor sockets is ensured.
Caution:
Note that the distributor sockets should not be installed in danges zones. Danger zones are, for example, transport routes, escape routes, etc.
Tehnični podatki in specifikacije
| Min. temperaturno območje [°C] | 1 |
| Max. obratovalni tlak [bar] | 15 |
| Max. temperaturno območje [°C] | 50 |
| Ohišje | Glass fibre-reinforced plastic PA6 GF 30 |
| Max. moment privijanja - medeninasta nit [Nm] | 12 |
| Max. moment privijanja - pritrdilne luknje [Nm] | 4 |
| Dovodni navoj | G 3/4 |
| Priključni navoj | 1 x G 1/2 |
