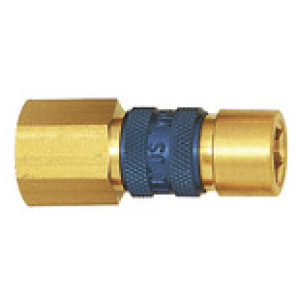

Priklopne hitre spojke I.D. 5, G 1/8 notranji navoj, rjava slika
Priklopne hitre spojke I.D. 5, G 1/8 notranji navoj, rjava slika

* slike so simbolične

Priklopne hitre spojke I.D. 5, G 1/8 notranji navoj, rjava

SKU: 107631RIE
EAN: 4047322061650

Captive quick-connect coupling I.D. 5, Bright brass, G 1/8 IT, brown, max. 35 bar, Medium / ambient temp. -20°C to 100°C

One-hand quick disconnect couplings with a large bore.

Different media can be connected safely and non-interchangeably even when space is restricted, thanks to the colour-coded coupling and plug and the different coupling profiles defined for each of the four colours.

Only couplings and plugs of the same colour fit together.

Areas of application: Pneumatic system, machine and plant engineering, measurement, monitoring and control systems, manufacturing industry, medical technology, chemical / pharmaceutical industry, automotive, food technology, aerospace.

Čas dobave: Predvidoma 3 - 5 dni
24,55 €
Primerjaj z ostalimi
Šifra Barva Povezava a/f [mm] Dolžina [mm] Zaloga Cena Nakup Natisni
107639RIE Red G 1/8 IT 14 45.0
Čas dobave: Predvidoma 3 - 5 dni
24,55 € Natisni
107635RIE Blue G 1/8 IT 14 45.0
Čas dobave: Predvidoma 3 - 5 dni
24,55 € Natisni
107640RIE Red G 1/4 IT 17 47.0
Čas dobave: Predvidoma 3 - 5 dni
24,55 € Natisni
107636RIE Blue G 1/4 IT 17 47.0
Čas dobave: Predvidoma 3 - 5 dni
24,55 € Natisni
107628RIE Green G 1/4 IT 17 47.0
Čas dobave: Predvidoma 3 - 5 dni
24,55 € Natisni
107627RIE Green G 1/8 IT 14 45.0
Čas dobave: Predvidoma 3 - 5 dni
24,55 € Natisni
107632RIE Brown G 1/4 IT 17 47.0
Čas dobave: Predvidoma 3 - 5 dni
24,55 € Natisni
107631RIE Brown G 1/8 IT 14 45.0
Čas dobave: Predvidoma 3 - 5 dni
24,55 € Natisni

Opis

Captive quick-connect coupling I.D. 5, Bright brass, G 1/8 IT, brown, max. 35 bar, Medium / ambient temp. -20°C to 100°C

One-hand quick disconnect couplings with a large bore.

Different media can be connected safely and non-interchangeably even when space is restricted, thanks to the colour-coded coupling and plug and the different coupling profiles defined for each of the four colours.

Only couplings and plugs of the same colour fit together.

Areas of application: Pneumatic system, machine and plant engineering, measurement, monitoring and control systems, manufacturing industry, medical technology, chemical / pharmaceutical industry, automotive, food technology, aerospace.

Tehnični podatki in specifikacije

DN 5
Povezava G 1/8 IT
Barva Brown
a/f [mm] 14
Dolžina [mm] 45.0
Delovni tlak 0 to 35 bar, maximum static working pressure (non-pulsating)
Min. sobna temperatura [°C] -20
Max. sobna temperatura [°C] 100
Min. temperatura medija [°C] -20
Max. temperatura medija [°C] 100
Ohišje Brass with a bare metal surface
Tesnilo NBR
Pretok 560 l/min (air)
Merjenje pretoka at 6 bar and Δp = 0.5 bar
Krogla Stainless steel
Vzmet Stainless steel
Pritrdilni obroč Stainless steel
Sprostitveni rokav Anodised aluminium
Ventil Brass with a bare metal surface
