* slike so simbolične

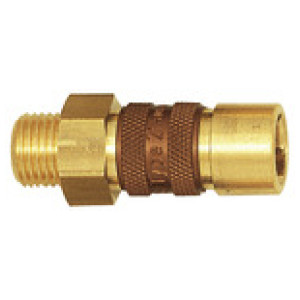

Priklopne hitre spojke I.D. 5, G 1/8 zunanji navoj, rjava
SKU: 107629RIE
EAN: 4047322061636
Captive quick-connect coupling I.D. 5, Bright brass, G 1/8 ET, brown, max. 35 bar, Medium / ambient temp. -20°C to 100°C
One-hand quick disconnect couplings with a large bore.
Different media can be connected safely and non-interchangeably even when space is restricted, thanks to the colour-coded coupling and plug and the different coupling profiles defined for each of the four colours.
Only couplings and plugs of the same colour fit together.
Areas of application: Pneumatic system, machine and plant engineering, measurement, monitoring and control systems, manufacturing industry, medical technology, chemical / pharmaceutical industry, automotive, food technology, aerospace.
| Šifra | Barva | Povezava | a/f [mm] | Dolžina [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|
| 107629RIE | Brown | G 1/8 ET | 14 | 45.0 | Čas dobave 3 - 5 dni | 24,55 € |  | |
| 107625RIE | Green | G 1/8 ET | 14 | 45.0 | Čas dobave 3 - 5 dni | 24,55 € | | |
| 107633RIE | Blue | G 1/8 ET | 14 | 45.0 | Čas dobave 3 - 5 dni | 24,55 € | | |
| 107637RIE | Red | G 1/8 ET | 14 | 45.0 | Čas dobave 3 - 5 dni | 24,55 € | | |
| 107638RIE | Red | G 1/4 ET | 17 | 47.0 | Čas dobave 3 - 5 dni | 24,55 € | | |
| 107634RIE | Blue | G 1/4 ET | 17 | 47.0 | Čas dobave 3 - 5 dni | 24,55 € | | |
| 107626RIE | Green | G 1/4 ET | 17 | 47.0 | Čas dobave 3 - 5 dni | 24,55 € | | |
| 107630RIE | Brown | G 1/4 ET | 17 | 47.0 | Čas dobave 3 - 5 dni | 24,55 € | |
Opis
Captive quick-connect coupling I.D. 5, Bright brass, G 1/8 ET, brown, max. 35 bar, Medium / ambient temp. -20°C to 100°C
One-hand quick disconnect couplings with a large bore.
Different media can be connected safely and non-interchangeably even when space is restricted, thanks to the colour-coded coupling and plug and the different coupling profiles defined for each of the four colours.
Only couplings and plugs of the same colour fit together.
Areas of application: Pneumatic system, machine and plant engineering, measurement, monitoring and control systems, manufacturing industry, medical technology, chemical / pharmaceutical industry, automotive, food technology, aerospace.
Tehnični podatki in specifikacije
| DN | 5 |
| Povezava | G 1/8 ET |
| Barva | Brown |
| a/f [mm] | 14 |
| Dolžina [mm] | 45.0 |
| Delovni tlak | 0 to 35 bar, maximum static working pressure (non-pulsating) |
| Min. sobna temperatura [°C] | -20 |
| Max. sobna temperatura [°C] | 100 |
| Min. temperatura medija [°C] | -20 |
| Max. temperatura medija [°C] | 100 |
| Ohišje | Brass with a bare metal surface |
| Tesnilo | NBR |
| Pretok | 560 l/min (air) |
| Merjenje pretoka | at 6 bar and Δp = 0.5 bar |
| Krogla | Stainless steel |
| Vzmet | Stainless steel |
| Pritrdilni obroč | Stainless steel |
| Sprostitveni rokav | Anodised aluminium |
| Ventil | Brass with a bare metal surface |
