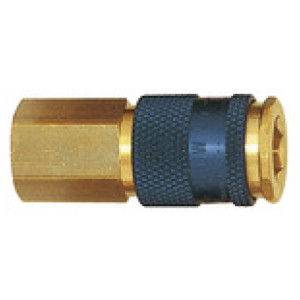

Priklopne hitre spojke I.D. 7.8, G 1/4 notranji navoj, zelena slika
Priklopne hitre spojke I.D. 7.8, G 1/4 notranji navoj, zelena slika

* slike so simbolične

Priklopne hitre spojke I.D. 7.8, G 1/4 notranji navoj, zelena

SKU: 107663RIE
EAN: 4047322062060

Captive quick-connect coupling I.D. 7.8, Bright brass, G 1/4 IT, green, max. 35 bar, Medium/ambient temp. -20°C to 100°C

One-hand quick disconnect couplings with a large bore.

Different media can be connected safely and non-interchangeably even when space is restricted, thanks to the colour-coded coupling and plug and the different coupling profiles defined for each of the four colours. Only couplings and plugs of the same colour fit together.

Areas of application: Pneumatic system, machine and plant engineering, measurement, monitoring and control systems, manufacturing industry, medical technology, chemical / pharmaceutical industry, automotive, food technology, aerospace.

Čas dobave: Predvidoma 3 - 5 dni
40,16 €
Primerjaj z ostalimi
Šifra Barva Povezava Dolžina [mm] Zaloga Cena Nakup Natisni
107671RIE Blue G 1/4 IT 55.5
Čas dobave: Predvidoma 3 - 5 dni
40,16 € Natisni
107675RIE Red G 1/4 IT 55.5
Čas dobave: Predvidoma 3 - 5 dni
40,16 € Natisni
107676RIE Red G 3/8 IT 54.5
Čas dobave: Predvidoma 3 - 5 dni
40,16 € Natisni
107668RIE Brown G 3/8 IT 54.5
Čas dobave: Predvidoma 3 - 5 dni
40,16 € Natisni
107667RIE Brown G 1/4 IT 55.5
Čas dobave: Predvidoma 3 - 5 dni
40,16 € Natisni
107672RIE Blue G 3/8 IT 54.5
Čas dobave: Predvidoma 3 - 5 dni
40,16 € Natisni
107664RIE Green G 3/8 IT 54.5
Čas dobave: Predvidoma 3 - 5 dni
40,16 € Natisni
107663RIE Green G 1/4 IT 55.5
Čas dobave: Predvidoma 3 - 5 dni
40,16 € Natisni

Opis

Captive quick-connect coupling I.D. 7.8, Bright brass, G 1/4 IT, green, max. 35 bar, Medium/ambient temp. -20°C to 100°C

One-hand quick disconnect couplings with a large bore.

Different media can be connected safely and non-interchangeably even when space is restricted, thanks to the colour-coded coupling and plug and the different coupling profiles defined for each of the four colours. Only couplings and plugs of the same colour fit together.

Areas of application: Pneumatic system, machine and plant engineering, measurement, monitoring and control systems, manufacturing industry, medical technology, chemical / pharmaceutical industry, automotive, food technology, aerospace.

Tehnični podatki in specifikacije

DN 7.8
Povezava G 1/4 IT
Barva Green
a/f [mm] 19
Dolžina [mm] 55.5
Delovni tlak 0 to 35 bar, maximum static working pressure (non-pulsating)
Min. sobna temperatura [°C] -20
Max. sobna temperatura [°C] 100
Min. temperatura medija [°C] -20
Max. temperatura medija [°C] 100
Ohišje Brass with a bare metal surface
Tesnilo NBR
Pretok 1800 l/min (air)
Merjenje pretoka at 6 bar and Δp = 0.5 bar
Krogla Stainless steel
Vzmet Stainless steel
Pritrdilni obroč Stainless steel
Sprostitveni rokav Anodised aluminium
Ventil Die-cast zinc, nickel-plated
