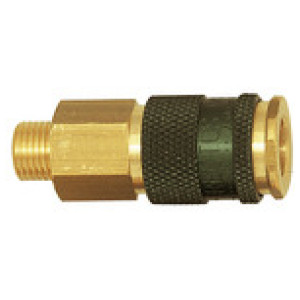

Priklopne hitre spojke I.D. 7.8, G 3/8 zunanji navoj, rdeča
SKU: 107674RIE
EAN: 4047322062176
Captive quick-connect coupling I.D. 7.8, Bright brass, G 3/8 ET, red, max. 35 bar, Medium/ambient temp. -20 °C to 100 °C
One-hand quick disconnect couplings with a large bore.
Different media can be connected safely and non-interchangeably even when space is restricted, thanks to the colour-coded coupling and plug and the different coupling profiles defined for each of the four colours. Only couplings and plugs of the same colour fit together.
Areas of application: Pneumatic system, machine and plant engineering, measurement, monitoring and control systems, manufacturing industry, medical technology, chemical / pharmaceutical industry, automotive, food technology, aerospace.
Povpraševanje
Krogla: Stainless steel
Merjenje pretoka: at 6 bar and Δp = 0.5 bar
Ohišje: Brass with a bare metal surface
Povezava: G 3/8 ET
Pritrdilni obroč: Stainless steel
Sprostitveni rokav: Anodised aluminium
Ventil: Die-cast zinc, nickel-plated
Vzmet: Stainless steel
Pretok: 1800 l/min (air)
| Šifra | Barva | Povezava | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|
| 107670RIE | Blue | G 3/8 ET | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje |  |
| 107662RIE | Green | G 3/8 ET | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 107673RIE | Red | G 1/4 ET | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 107665RIE | Brown | G 1/4 ET | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 107669RIE | Blue | G 1/4 ET | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 107661RIE | Green | G 1/4 ET | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 107666RIE | Brown | G 3/8 ET | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 107674RIE | Red | G 3/8 ET | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
Opis
Captive quick-connect coupling I.D. 7.8, Bright brass, G 3/8 ET, red, max. 35 bar, Medium/ambient temp. -20 °C to 100 °C
One-hand quick disconnect couplings with a large bore.
Different media can be connected safely and non-interchangeably even when space is restricted, thanks to the colour-coded coupling and plug and the different coupling profiles defined for each of the four colours. Only couplings and plugs of the same colour fit together.
Areas of application: Pneumatic system, machine and plant engineering, measurement, monitoring and control systems, manufacturing industry, medical technology, chemical / pharmaceutical industry, automotive, food technology, aerospace.
Tehnični podatki in specifikacije
| DN | 7.8 |
| Povezava | G 3/8 ET |
| Barva | Red |
| a/f [mm] | 19 |
| Dolžina [mm] | 57.5 |
| Delovni tlak | 0 to 35 bar, maximum static working pressure (non-pulsating) |
| Min. sobna temperatura [°C] | -20 |
| Max. sobna temperatura [°C] | 100 |
| Min. temperatura medija [°C] | -20 |
| Max. temperatura medija [°C] | 100 |
| Ohišje | Brass with a bare metal surface |
| Tesnilo | NBR |
| Pretok | 1800 l/min (air) |
| Merjenje pretoka | at 6 bar and Δp = 0.5 bar |
| Krogla | Stainless steel |
| Vzmet | Stainless steel |
| Pritrdilni obroč | Stainless steel |
| Sprostitveni rokav | Anodised aluminium |
| Ventil | Die-cast zinc, nickel-plated |
