Prop. regula. ventil posiflow, 24 V DC, NC, G 3/8, DN 7.1

SKU: 101648RIE
EAN: 4047322163491

Proportional control valve »posiflow«, for water / oil, 24 V DC, NC, G 3/8, DN 7.1, Operating pressure difference max. 1 bar

For electronic flow control.

For all applications where the flow rate of a liquid or gas has to be controlled.

The valve features a special magnet armature and is characterised by low friction and a high dynamic response.

If the valve is combined with a plug amplifier:

The maximum / minimum current and frequency can be adjusted by means of integrated potentiometers.

A current ramp can also be connected and adjusted with a potentiometer.

This facilitates a slow change in the flow rate, even if the setpoint changes suddenly.

If the setpoint is < 200 mV (< 0.4 / 4.4 mA), the piloting current is completely switched off, causing the valve to be de-energised (tightly closed function).

We recommend combining these proportional valves with a plug amplifier.

Benefits:

- Compact and economical

- Integrated temperature compensation

- Precise control

- Optimised flow with no water hammer

- Ramp function assures a smooth response to step changes in the input signal

- Disconnect function

Čas dobave 3 - 5 dni
295,23 €
ali od 10,04 € / mesec
Izračunaj obrok
leanpay logo
Obrestno financiranje
  • 10,04 € x 36 mesecev
  • 14,42 € x 24 mesecev
  • 27,60 € x 12 mesecev
  • 54,00 € x 6 mesecev
  • 106,80 € x 3 mesecev

Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.

Primerjaj z ostalimi
Šifra Navoj DN Max. razlika v delovnem tlaku [bar] B [mm] C [mm] Zaloga Cena Nakup Natisni
101645RIE G 1/4 2.4 8 40.0 95.0
Čas dobave 3 - 5 dni
270,64 € Natisni
101648RIE G 3/8 7.1 1 48.0 97.0
Čas dobave 3 - 5 dni
295,23 € Natisni
101647RIE G 3/8 5.6 1.4 48.0 97.0
Čas dobave 3 - 5 dni
295,23 € Natisni
101646RIE G 1/4 3.2 4 40.0 95.0
Čas dobave 3 - 5 dni
270,64 € Natisni

Opis

Proportional control valve »posiflow«, for water / oil, 24 V DC, NC, G 3/8, DN 7.1, Operating pressure difference max. 1 bar

For electronic flow control.

For all applications where the flow rate of a liquid or gas has to be controlled.

The valve features a special magnet armature and is characterised by low friction and a high dynamic response.

If the valve is combined with a plug amplifier:

The maximum / minimum current and frequency can be adjusted by means of integrated potentiometers.

A current ramp can also be connected and adjusted with a potentiometer.

This facilitates a slow change in the flow rate, even if the setpoint changes suddenly.

If the setpoint is < 200 mV (< 0.4 / 4.4 mA), the piloting current is completely switched off, causing the valve to be de-energised (tightly closed function).

We recommend combining these proportional valves with a plug amplifier.

Benefits:

- Compact and economical

- Integrated temperature compensation

- Precise control

- Optimised flow with no water hammer

- Ramp function assures a smooth response to step changes in the input signal

- Disconnect function

Tehnični podatki in specifikacije

Navoj G 3/8
DN 7.1
Ohišje Brass
Tesnilo FKM
Min. temperatura medija [°C] -10
Max. temperatura medija [°C] 90
Min. sobna temperatura [°C] -10
Max. sobna temperatura [°C] 75
Notranji deli Stainless steel
Poskusno Via plug amplifier 0 to 10 V, 0 to 20 mA, 4 to 20 mA

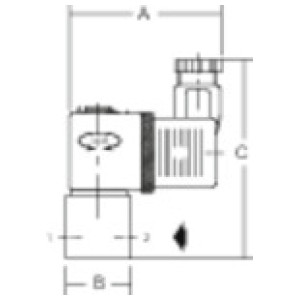

A [mm] 85.0
B [mm] 48.0
C [mm] 97.0
Srednje Air, neutral gases, water, oil
Vedenje v varnostnem načinu Tight closure in case of loss of voltage
Ventilski disk FKM
Sedež ventila Brass
Razpon tlaka Vacuum to 8 bar
Max. razlika v delovnem tlaku [bar] 1
