Proporcionalni kont. ventil »posiflow«24V DC, NC, G1/8,DN1.6
SKU: 101640RIE
EAN: 4047322163415
Proportional control valve »posiflow« for air / gas / water / oil, 24 V DC, NC, G 1/8, DN 1.6, Operating pressure diff. max. 4 bar
For electronic flow control.
For all applications where the flow rate of a liquid or gas has to be controlled.
The valve features a special magnet armature and is characterised by low friction and a high dynamic response.
If the valve is combined with a plug amplifier:
The maximum / minimum current and frequency can be adjusted by means of integrated potentiometers.
A current ramp can also be connected and adjusted with a potentiometer.
This facilitates a slow change in the flow rate, even if the setpoint changes suddenly.
If the setpoint is < 200 mV (< 0.4 / 4.4 mA), the piloting current is completely switched off, causing the valve to be de-energised (tightly closed function).
We recommend combining these proportional valves with a plug amplifier.
Benefits:
- Compact and economical
- Integrated temperature compensation
- Precise control
- Optimised flow with no water hammer
- Ramp function assures a smooth response to step changes in the input signal
- Disconnect function
Povpraševanje
Notranji deli: Stainless steel
Ohišje: Brass
Poskusno: Via plug amplifier 0 to 10 V, 0 to 20 mA, 4 to 20 mA
Razpon tlaka: Vacuum to 8 bar
Sedež ventila: Brass
Srednje: Air, neutral gases, water, oil
Vedenje v varnostnem načinu: Tight closure in case of loss of voltage
| Šifra | DN | Max. razlika v delovnem tlaku [bar] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|
| 101640RIE | 1.6 | 4 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje |  |
| 101639RIE | 1.2 | 5 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
Opis
Proportional control valve »posiflow« for air / gas / water / oil, 24 V DC, NC, G 1/8, DN 1.6, Operating pressure diff. max. 4 bar
For electronic flow control.
For all applications where the flow rate of a liquid or gas has to be controlled.
The valve features a special magnet armature and is characterised by low friction and a high dynamic response.
If the valve is combined with a plug amplifier:
The maximum / minimum current and frequency can be adjusted by means of integrated potentiometers.
A current ramp can also be connected and adjusted with a potentiometer.
This facilitates a slow change in the flow rate, even if the setpoint changes suddenly.
If the setpoint is < 200 mV (< 0.4 / 4.4 mA), the piloting current is completely switched off, causing the valve to be de-energised (tightly closed function).
We recommend combining these proportional valves with a plug amplifier.
Benefits:
- Compact and economical
- Integrated temperature compensation
- Precise control
- Optimised flow with no water hammer
- Ramp function assures a smooth response to step changes in the input signal
- Disconnect function
Tehnični podatki in specifikacije
| Navoj | G 1/8 |
| DN | 1.6 |
| Ohišje | Brass |
| Tesnilo | FKM |
| Max. temperatura medija [°C] | 50 |
| Max. sobna temperatura [°C] | 40 |
| Notranji deli | Stainless steel |
| Poskusno | Via plug amplifier 0 to 10 V, 0 to 20 mA, 4 to 20 mA |

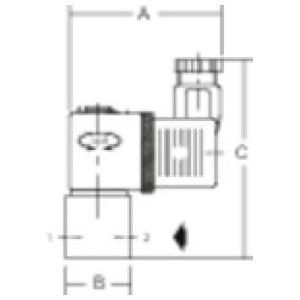

| A [mm] | 59.0 |
| B [mm] | 25.0 |
| C [mm] | 78.0 |
| Srednje | Air, neutral gases, water, oil |
| Vedenje v varnostnem načinu | Tight closure in case of loss of voltage |
| Ventilski disk | FKM |
| Sedež ventila | Brass |
| Razpon tlaka | Vacuum to 8 bar |
| Max. razlika v delovnem tlaku [bar] | 4 |
