Proporcionalni kont. ventil »posiflow«24V DC, NC, G3/8,DN5.6
SKU: 101643RIE
EAN: 4047322163446
Proportional control valve »posiflow«, for air / gas, 24 V DC, NC, G 3/8, DN 5.6, Operating pressure difference max. 1.4 bar
For electronic flow control.
For all applications where the flow rate of a liquid or gas has to be controlled.
The valve features a special magnet armature and is characterised by low friction and a high dynamic response.
If the valve is combined with a plug amplifier:
The maximum / minimum current and frequency can be adjusted by means of integrated potentiometers.
A current ramp can also be connected and adjusted with a potentiometer.
This facilitates a slow change in the flow rate, even if the setpoint changes suddenly.
If the setpoint is < 200 mV (< 0.4 / 4.4 mA), the piloting current is completely switched off, causing the valve to be de-energised (tightly closed function).
We recommend combining these proportional valves with a plug amplifier.
Benefits:
- Compact and economical
- Integrated temperature compensation
- Precise control
- Optimised flow with no water hammer
- Ramp function assures a smooth response to step changes in the input signal
- Disconnect function
Obrestno financiranje
- 10,34 € x 36 mesecev
- 14,86 € x 24 mesecev
- 28,45 € x 12 mesecev
- 55,65 € x 6 mesecev
- 110,06 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
| Šifra | Navoj | DN | Max. razlika v delovnem tlaku [bar] | B [mm] | C [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|
| 101642RIE | G 1/4 | 3.2 | 4 | 40.0 | 95.0 | Čas dobave: Predvidoma 3 - 5 dni | 270,64 € |  | |
| 101641RIE | G 1/4 | 2.4 | 8 | 40.0 | 95.0 | Čas dobave: Predvidoma 3 - 5 dni | 270,64 € | | |
| 101644RIE | G 3/8 | 7.1 | 1 | 48.0 | 97.0 | Čas dobave: Predvidoma 3 - 5 dni | 304,00 € | | |
| 101643RIE | G 3/8 | 5.6 | 1.4 | 48.0 | 97.0 | Čas dobave: Predvidoma 3 - 5 dni | 304,00 € | |
Opis
Proportional control valve »posiflow«, for air / gas, 24 V DC, NC, G 3/8, DN 5.6, Operating pressure difference max. 1.4 bar
For electronic flow control.
For all applications where the flow rate of a liquid or gas has to be controlled.
The valve features a special magnet armature and is characterised by low friction and a high dynamic response.
If the valve is combined with a plug amplifier:
The maximum / minimum current and frequency can be adjusted by means of integrated potentiometers.
A current ramp can also be connected and adjusted with a potentiometer.
This facilitates a slow change in the flow rate, even if the setpoint changes suddenly.
If the setpoint is < 200 mV (< 0.4 / 4.4 mA), the piloting current is completely switched off, causing the valve to be de-energised (tightly closed function).
We recommend combining these proportional valves with a plug amplifier.
Benefits:
- Compact and economical
- Integrated temperature compensation
- Precise control
- Optimised flow with no water hammer
- Ramp function assures a smooth response to step changes in the input signal
- Disconnect function
Tehnični podatki in specifikacije
| Navoj | G 3/8 |
| DN | 5.6 |
| Ohišje | Brass |
| Tesnilo | FKM |
| Min. temperatura medija [°C] | -10 |
| Max. temperatura medija [°C] | 90 |
| Min. sobna temperatura [°C] | -10 |
| Max. sobna temperatura [°C] | 75 |
| Notranji deli | Stainless steel |
| Poskusno | Via plug amplifier 0 to 10 V, 0 to 20 mA, 4 to 20 mA |

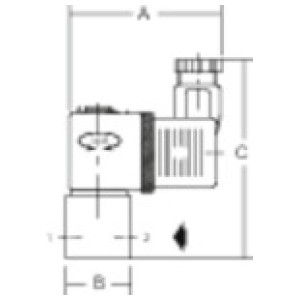

| A [mm] | 85.0 |
| B [mm] | 48.0 |
| C [mm] | 97.0 |
| Srednje | Air, neutral gases, water, oil |
| Vedenje v varnostnem načinu | Tight closure in case of loss of voltage |
| Ventilski disk | FKM |
| Sedež ventila | Brass |
| Razpon tlaka | Vacuum to 8 bar |
| Max. razlika v delovnem tlaku [bar] | 1.4 |
