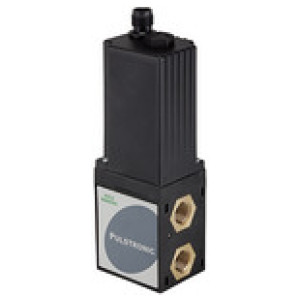

Proporcionalni kont. ventil »pulstronic II«24V DC, G1/8, DN1
SKU: 101629RIE
EAN: 4047322339919
Proportional control valve »pulstronic II«, 3-way design, with control circuit, 24 V DC, G 1/8, DN 1, Pressure range 0 - 10 bar
For electronic pressure control
Compact, electropneumatic pressure regulating valve which converts an electronic signal to a pneumatic pressure.
It is particularly suited for precise pressure regulation as well as for pressure control in conjunction with a constant
flow due to its internal control loop with electronic pressure feedback.

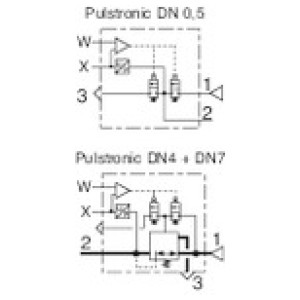

Operating principle:
Two pulsed pilot valves change the pressure in the control chamber.
A downstream pressure booster converts the pilot pressure into an outlet pressure.
The outlet pressure is measured with a pressure sensor and fed into the internal control loop.
The setpoint is established over the electrical plug-in connector as a standard signal (0 to 10 V).
Povpraševanje
Električna nastavitev: 0 - 10 V, 0 - 20 mA, 4 - 20 mA
histereza: < 1% FS
Merjenje pretoka: At P2 = 6 bar
Navoj: G 1/8
Ponovljivost: ± 0.5% FS
Poskusno: 0 - 10 V
Srednje: Air or neutral gases, filter.50 µm, lubricat. or unlubricat.
Tesnilo: NBR, FPM
Vedenje v varnostnem načinu: Maintenance of press. in case of loss of voltage-non control

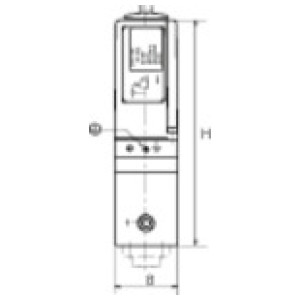

H [mm]: 105.6
| Šifra | Navoj | DN | Pretok [l/min] | H [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|
| 101629RIE | G 1/8 | 1 | 13 | 105.6 | Čas dobave: Predvidoma 3 - 5 dni | ? | Povpraševanje |  |
| 101630RIE | G 1/4 | 4 | 470 | 144.0 | Čas dobave: Predvidoma 3 - 5 dni | ? | Povpraševanje | |
Opis
Proportional control valve »pulstronic II«, 3-way design, with control circuit, 24 V DC, G 1/8, DN 1, Pressure range 0 - 10 bar
For electronic pressure control
Compact, electropneumatic pressure regulating valve which converts an electronic signal to a pneumatic pressure.
It is particularly suited for precise pressure regulation as well as for pressure control in conjunction with a constant
flow due to its internal control loop with electronic pressure feedback.
Operating principle:
Two pulsed pilot valves change the pressure in the control chamber.
A downstream pressure booster converts the pilot pressure into an outlet pressure.
The outlet pressure is measured with a pressure sensor and fed into the internal control loop.
The setpoint is established over the electrical plug-in connector as a standard signal (0 to 10 V).
Tehnični podatki in specifikacije
| Navoj | G 1/8 |
| Max. delovni tlak [bar] | 10 |
| DN | 1 |
| Ohišje | POM |
| Tesnilo | NBR, FPM |
| Max. temperatura medija [°C] | 60 |
| Max. sobna temperatura [°C] | 50 |
| Delovanje | Pulsed 3/2-way valves |
| Notranji deli | POM |
| Poskusno | 0 - 10 V |
| Električna nastavitev | 0 - 10 V, 0 - 20 mA, 4 - 20 mA |
| Pretok [l/min] | 13 |
| B [mm] | 46.5 |
| H [mm] | 105.6 |
| Srednje | Air or neutral gases, filter.50 µm, lubricat. or unlubricat. |
| Merjenje pretoka | At P2 = 6 bar |
| Vedenje v varnostnem načinu | Maintenance of press. in case of loss of voltage-non control |
| Ponovljivost | ± 0.5% FS |
| histereza | < 1% FS |
