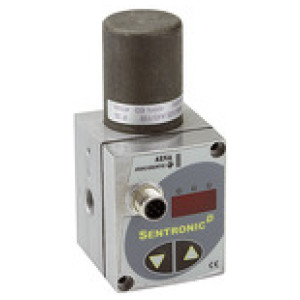

Proporcionalni kont. ventil »sentronic D«24V DC, G 3/8, DN 8
SKU: 101634RIE
EAN: 4047322163576
Proportional control valve »sentronic D«, 3-way design, digital, 24 V DC, G 3/8, DN 8, Pressure range 0 - 10 bar
For electronic pressure control.
Highly dynamic, 3-way proportional valve with digital control.
D stands for:
- Digital communication and control
- Display (integrated)
- Directly operated
- Dynamic (high-speed)
A special feature is the DaS software (see "Downloads") that provides optimum controller adjustment over a PC (RS 232 interface). This software additionally allows the setpoint and actual value to be visualised.
Other functions are valve diagnostics, parameter setting and maintenance. The valve's outlet pressure can also be adjusted using the integrated display and the function buttons, and the valve can optionally be operated without a PC.
Benefits:
- Minimum hysteresis
- Extremely short response times
- Extremely low sensitivity
- No constant air consumption
- Analogue actual value output
- Digital control
- High speed
- Communication with a PC
Obrestno financiranje
- 100 € + 33,84 € x 48 mesecev
- 100 € + 43,25 € x 36 mesecev
- 100 € + 62,13 € x 24 mesecev
- 100 € + 118,93 € x 12 mesecev
- 100 € + 232,65 € x 6 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
| Šifra | Navoj | DN | B [mm] | C [mm] | Pretok [l/min] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|
| 101633RIE | G 1/4 | 8 | 66.0 | 138.0 | 1750 | Čas dobave: Predvidoma 3 - 5 dni | 1.227,16 € |  | |
| 101632RIE | G 1/4 | 4 | 52.0 | 112.0 | 780 | Čas dobave: Predvidoma 3 - 5 dni | 1.188,99 € | | |
| 101631RIE | G 1/8 | 4 | 52.0 | 112.0 | 780 | Čas dobave: Predvidoma 3 - 5 dni | 1.145,14 € | | |
| 101634RIE | G 3/8 | 8 | 66.0 | 138.0 | 1750 | Čas dobave: Predvidoma 3 - 5 dni | 1.271,02 € | |
Opis
Proportional control valve »sentronic D«, 3-way design, digital, 24 V DC, G 3/8, DN 8, Pressure range 0 - 10 bar
For electronic pressure control.
Highly dynamic, 3-way proportional valve with digital control.
D stands for:
- Digital communication and control
- Display (integrated)
- Directly operated
- Dynamic (high-speed)
A special feature is the DaS software (see "Downloads") that provides optimum controller adjustment over a PC (RS 232 interface). This software additionally allows the setpoint and actual value to be visualised.
Other functions are valve diagnostics, parameter setting and maintenance. The valve's outlet pressure can also be adjusted using the integrated display and the function buttons, and the valve can optionally be operated without a PC.
Benefits:
- Minimum hysteresis
- Extremely short response times
- Extremely low sensitivity
- No constant air consumption
- Analogue actual value output
- Digital control
- High speed
- Communication with a PC
Tehnični podatki in specifikacije
| Navoj | G 3/8 |
| Max. delovni tlak [bar] | 10 |
| DN | 8 |
| Ohišje | Aluminium |
| Tesnilo | NBR |
| Max. temperatura medija [°C] | 60 |
| Max. sobna temperatura [°C] | 50 |
| Delovanje | Proportional solenoid valve |
| Notranji deli | POM |
| Poskusno | 0 - 10 V |
| Električna nastavitev | 0 - 10 V |
| Pretok [l/min] | 1750 |

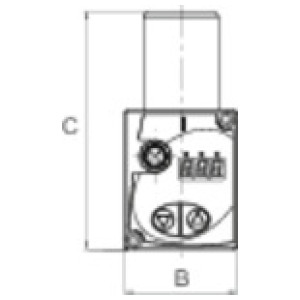

| B [mm] | 66.0 |
| C [mm] | 138.0 |
| Srednje | Air or neutral gases (? 50 µm filter specified) |
| Vedenje v varnostnem načinu | Pressure relieved in case of loss of voltage |
| Max. analogni izhod [V] | 10 |
| Digitalni izhod | Pressure switch output PNP +/- 5% |
