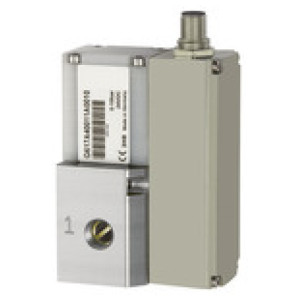

Proporcionalni kont. ventil »sentronic LP«24V DCG 1/4DN 4

SKU: 135885RIE
EAN: 4047322501262

Proportional control valve »sentronic LP«, 3-way design, with control circuit, 24 V DC, G 1/4, DN 4, Pressure range 0 - 10 bar

Proportional valve for simple and efficient pressure regulation.

With low space requirement, simple operation, modular design and modern software (see Downloads), the valve offers many options for optimising your processes.

Digital communication and control technology.

Low power consumption < 4 W through servo-assisted pilot valves.

Other functions are diagnostics, parameterisation and service.

Servo-assisted proportional valve, conforms to RoHS, REACH.

The target value is preset via the electrical plug connection as a standard signal (0 - 10 V).

Čas dobave: Predvidoma 3 - 5 dni
877,39 €
ali od 23,35 € / mesec
Izračunaj obrok
leanpay logo
Obrestno financiranje
  • 23,35 € x 48 mesecev
  • 29,84 € x 36 mesecev
  • 42,87 € x 24 mesecev
  • 82,06 € x 12 mesecev
  • 160,53 € x 6 mesecev
  • 317,50 € x 3 mesecev

Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.

Primerjaj z ostalimi
Šifra Zaloga Cena Nakup Natisni
135885RIE
Čas dobave: Predvidoma 3 - 5 dni
877,39 € Natisni

Opis

Proportional control valve »sentronic LP«, 3-way design, with control circuit, 24 V DC, G 1/4, DN 4, Pressure range 0 - 10 bar

Proportional valve for simple and efficient pressure regulation.

With low space requirement, simple operation, modular design and modern software (see Downloads), the valve offers many options for optimising your processes.

Digital communication and control technology.

Low power consumption < 4 W through servo-assisted pilot valves.

Other functions are diagnostics, parameterisation and service.

Servo-assisted proportional valve, conforms to RoHS, REACH.

The target value is preset via the electrical plug connection as a standard signal (0 - 10 V).

Tehnični podatki in specifikacije

Navoj G 1/4
Max. delovni tlak [bar] 10
DN 4
Ohišje Aluminium
Tesnilo NBR
Max. temperatura medija [°C] 60
Max. sobna temperatura [°C] 50
Delovanje 3-way valves
Notranji deli G 1/4
Poskusno 0 - 10 V
Električna nastavitev 0 - 10 V

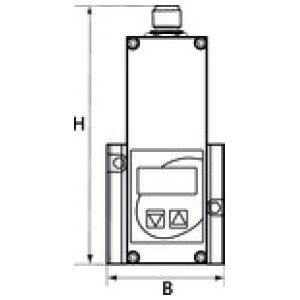

B [mm] 52.0
H [mm] 115.0
Srednje Air or neutral gases, filter.50 µm, lubricat. or unlubricat.
Merjenje pretoka At P2 = 6 bar
Vedenje v varnostnem načinu Maintenance of press. in case of loss of voltage-non control
Ponovljivost 1% FS
histereza 1% FS
Pretok 470 l/min
