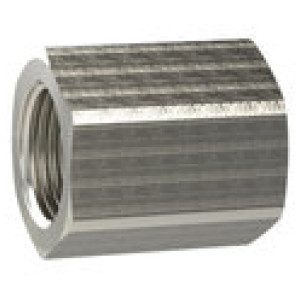

Puša šesterokotna, reducirana G 3/4 i., M14x1.5 i.
SKU: 136575RIE
EAN: 4047322506700
Bushing, exterior hexagonal, red. G 3/4 i. M14x1.5 i.nickel-plated brass, Max. working pressure 25 bar, Max. operating temp. 150°C
Suitable for air, water, oil, steam, etc.
Čas dobave: Predvidoma 3 - 5 dni
14,51 €
| Šifra | Navoj 1 | Navoj 2 | a/f [mm] | L1 [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|
| 136570RIE | G 1/8 | G 1/4 | 17 | 26.0 | Čas dobave: Predvidoma 3 - 5 dni | 3,04 € |  | |
| 136571RIE | G 1/4 | G 3/8 | 22 | 26.0 | Čas dobave: Predvidoma 3 - 5 dni | 4,56 € | | |
| 136574RIE | G 1/2 | M16x1.5 | 27 | 24.0 | Čas dobave: Predvidoma 3 - 5 dni | 10,81 € | | |
| 136572RIE | G 3/8 | G 1/2 | 27 | 30.0 | Čas dobave: Predvidoma 3 - 5 dni | 5,55 € | | |
| 136573RIE | G 1/2 | M14x1.5 | 27 | 30.0 | Čas dobave: Predvidoma 3 - 5 dni | 10,17 € | | |
| 136576RIE | G 3/4 | M16x1.5 | 32 | 28.0 | Čas dobave: Predvidoma 3 - 5 dni | 14,51 € | | |
| 136575RIE | G 3/4 | M14x1.5 | 32 | 28.0 | Čas dobave: Predvidoma 3 - 5 dni | 14,51 € | |
Opis
Bushing, exterior hexagonal, red. G 3/4 i. M14x1.5 i.nickel-plated brass, Max. working pressure 25 bar, Max. operating temp. 150°C
Suitable for air, water, oil, steam, etc.
Tehnični podatki in specifikacije
| Max. delovni tlak [bar] | 25 |
| Max. delovna temperatura [°C] | 150 |
| Material | Nickel-plated brass CW614N |
| Navoj 1 | G 3/4 |
| Navoj 2 | M14x1.5 |
| L1 [mm] | 28.0 |
| a/f [mm] | 32 |
