-19%
* slike so simbolične

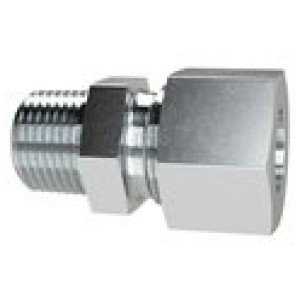

Ravna vijač. zveza M, R 3/8, zun. premer Ø12, galvan.jeklo
SKU: 159638RIE
EAN: 4047322642682
Straight screw-in fitting, R 3/8 o., Pipe exterior Ø 12 mm, PN bar 630, A/F1 24, A/F2 22, galvanised steel
Male connector, conical male thread acc. to ISO 7-1, heavy type
Čas dobave 3 - 5 dni
6,40 €
5,12 €

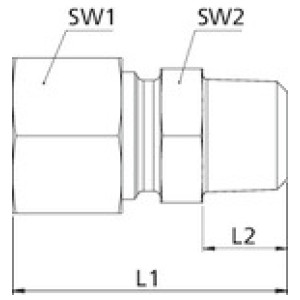

| Šifra | Navoj | L2 [mm] | O.D. cev [mm] | a/f 2 [mm] | a/f 1 [mm] | L1 [mm] | PN [bar] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 159644RIE | R 3/4 | 18.0 | 20 | 32 | 36 | 60.0 | 400 | Čas dobave 3 - 5 dni | 11,73 € |  | |
| 159637RIE | R 1/4 | 13.0 | 12 | 22 | 24 | 46.0 | 630 | Čas dobave 3 - 5 dni | 7,74 € | | |
| 159635RIE | R 1/4 | 13.0 | 10 | 19 | 22 | 44.0 | 630 | Čas dobave 3 - 5 dni | 6,90 € | | |
| 159640RIE | R 3/8 | 13.0 | 14 | 24 | 27 | 50.0 | 630 | Čas dobave 3 - 5 dni | 11,31 € | | |
| 159639RIE | R 1/2 | 16.0 | 12 | 22 | 24 | 49.0 | 630 | Čas dobave 3 - 5 dni | 5,95 € | | |
| 159641RIE | R 1/2 | 16.0 | 14 | 24 | 27 | 53.0 | 630 | Čas dobave 3 - 5 dni | 7,46 € | | |
| 159636RIE | R 3/8 | 13.0 | 10 | 19 | 22 | 44.0 | 630 | Čas dobave 3 - 5 dni | 4,41 € | | |
| 159643RIE | R 1/2 | 16.0 | 16 | 27 | 30 | 53.0 | 400 | Čas dobave 3 - 5 dni | 7,72 € | | |
| 159633RIE | R 1/4 | 13.0 | 6 | 17 | 17 | 41.0 | 630 | Čas dobave 3 - 5 dni | 3,24 € | | |
| 159634RIE | R 1/4 | 13.0 | 8 | 17 | 19 | 43.0 | 630 | Čas dobave 3 - 5 dni | 3,50 € | | |
| 159645RIE | R 1 | 20.0 | 25 | 41 | 46 | 67.0 | 400 | Čas dobave 3 - 5 dni | 19,93 € | | |
| 159642RIE | R 3/8 | 13.0 | 16 | 27 | 30 | 50.0 | 400 | Čas dobave 3 - 5 dni | 12,66 € | | |
| 159638RIE | R 3/8 | 13.0 | 12 | 22 | 24 | 46.0 | 630 | Čas dobave 3 - 5 dni | 5,12 € | |
Opis
Straight screw-in fitting, R 3/8 o., Pipe exterior Ø 12 mm, PN bar 630, A/F1 24, A/F2 22, galvanised steel
Male connector, conical male thread acc. to ISO 7-1, heavy type
Tehnični podatki in specifikacije
| Material | Galvanised steel (DIN 2353) |
| Navoj | R 3/8 |
| O.D. cev [mm] | 12 |
| L1 [mm] | 46.0 |
| L2 [mm] | 13.0 |
| a/f 1 [mm] | 24 |
| a/f 2 [mm] | 22 |
| PN [bar] | 630 |
