Ravni navojni priključek M G 1/4 o., za za cev 4/6 mm, PFA
SKU: 110918RIE
EAN: 4047322295987

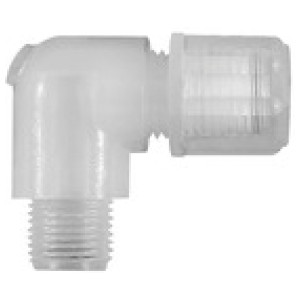

Angled screw-in fitting G 1/4 o., for hose 4/6 mm, Working pressure max. 10 bar (20 °C)/max. 1 bar (170 °C), PFA
Perfluoroalkoxy alkane (PFA): A fluoroplastic with the same chemical resistance as PTFE but much stronger and suitable for temperatures up to 200°C.
Opis
Angled screw-in fitting G 1/4 o., for hose 4/6 mm, Working pressure max. 10 bar (20 °C)/max. 1 bar (170 °C), PFA
Perfluoroalkoxy alkane (PFA): A fluoroplastic with the same chemical resistance as PTFE but much stronger and suitable for temperatures up to 200°C.
Tehnični podatki in specifikacije
Max. delovni tlak pri 20 ° C [bar] | 10 |
Max. delovna temperatura [°C] | 200 |
Max. delovni tlak od 170 ° C [bar] | 1 |
Navoj | G 1/4 |
Za cevi [mm] | 4/6 |

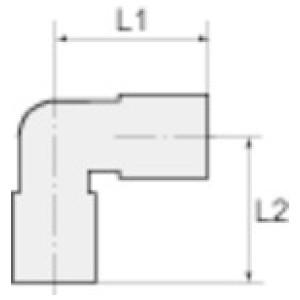

L1 [mm] | 26.0 |
L2 [mm] | 25.0 |
Material | Perfluoroalkoxy alkane (PFA) |
