Ravni pot.i fiting G 1/2 , zun. premera 12 mm slika
Ravni pot.i fiting G 1/2 , zun. premera 12 mm slika

* slike so simbolične

Ravni pot.i fiting G 1/2 , zun. premera 12 mm

SKU: 135072RIE
EAN: 4047322492799

Straight push-in fitting,Exterior hexagonal,G 1/2 o. for hose exterior Ø 12 mm,Working pressure -0.98 - 20 bar, 1.4404

For use in more aggressive environments and corrosive media.

The suitability test for the individual application is the user's responsibility.

Čas dobave: Predvidoma 3 - 5 dni
Pošljite povpraševanje
Primerjaj z ostalimi

Opis

Straight push-in fitting,Exterior hexagonal,G 1/2 o. for hose exterior Ø 12 mm,Working pressure -0.98 - 20 bar, 1.4404

For use in more aggressive environments and corrosive media.

The suitability test for the individual application is the user's responsibility.

Tehnični podatki in specifikacije

Min. delovni tlak [bar] -0.98
Max. delovni tlak [bar] 20
Min. delovna temperatura [°C] -20
Max. delovna temperatura [°C] 150
Min. temperatura medija [°C] -20
Max. temperatura medija [°C] 150
Tesnilo FPM
Primerni materiali za cevi PVDF, PTFE, PA, PU
Navoj G 1/2
Za cevi O.D. [mm] 12

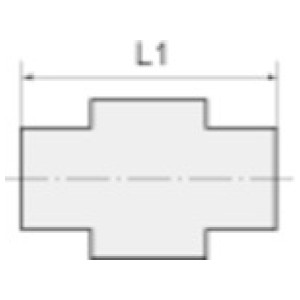

L1 [mm] 28.4
a/f [mm] 27
Standardni navoj DIN EN ISO 228-1
Material Stainless steel 1.4404
