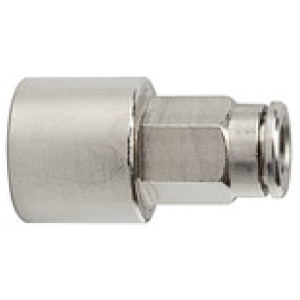

Ravni pot.i fiting Metallica G 1/4 i., Cev zunanja Ø 10
SKU: 108878RIE
EAN: 4047322279062
Straight push-in fitting »metallica«, G 1/4 i., for hose exterior Ø 10 mm, Working pressure -0.98 to 16 bar, nickel-plated brass
"All parts with a parallel thread are supplied with an FPM O-ring while the conical threads are coated with preCOTE 5 dispersion
Čas dobave: Predvidoma 3 - 5 dni
4,97 €
| Šifra | Navoj | Za cevi O.D. [mm] | a/f [mm] | L1 [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|
| 108874RIE | G 1/8 | 8 | 13 | 28.0 | Čas dobave: Predvidoma 3 - 5 dni | 3,75 € |  | |
| 108872RIE | G 1/8 | 4 | 9 | 26.5 | Čas dobave: Predvidoma 3 - 5 dni | 3,75 € | | |
| 108877RIE | G 1/4 | 8 | 13 | 32.0 | Čas dobave: Predvidoma 3 - 5 dni | 3,90 € | | |
| 108881RIE | G 3/8 | 12 | 20 | 39.5 | Čas dobave: Predvidoma 3 - 5 dni | 8,34 € | | |
| 108879RIE | G 1/4 | 12 | 20 | 40.0 | Čas dobave: Predvidoma 3 - 5 dni | 8,66 € | | |
| 136775RIE | G 1/2 | 16 | 24 | 41.0 | Čas dobave: Predvidoma 3 - 5 dni | 34,99 € | | |
| 108873RIE | G 1/8 | 6 | 11 | 27.0 | Na zalogi | 3,56 € | | |
| 108875RIE | G 1/4 | 4 | 9 | 29.5 | Čas dobave: Predvidoma 3 - 5 dni | 4,76 € | | |
| 108876RIE | G 1/4 | 6 | 11 | 31.0 | Čas dobave: Predvidoma 3 - 5 dni | 4,10 € | | |
| 108880RIE | G 3/8 | 10 | 20 | 37.5 | Čas dobave: Predvidoma 3 - 5 dni | 8,10 € | | |
| 108878RIE | G 1/4 | 10 | 16 | 32.0 | Čas dobave: Predvidoma 3 - 5 dni | 4,97 € | |
Opis
Straight push-in fitting »metallica«, G 1/4 i., for hose exterior Ø 10 mm, Working pressure -0.98 to 16 bar, nickel-plated brass
"All parts with a parallel thread are supplied with an FPM O-ring while the conical threads are coated with preCOTE 5 dispersion
Tehnični podatki in specifikacije
| Serija | metallica |
| Min. delovni tlak [bar] | -0.98 |
| Max. delovni tlak [bar] | 16 |
| Min. delovna temperatura [°C] | -20 |
| Max. delovna temperatura [°C] | 150 |
| Priporočena cev | PA and PU |
| Rokav | Nickel-plated brass |
| Vpenjalni obroč | Female connector, parallel female thread with outer hex |
| Navoj | G 1/4 |
| Za cevi O.D. [mm] | 10 |

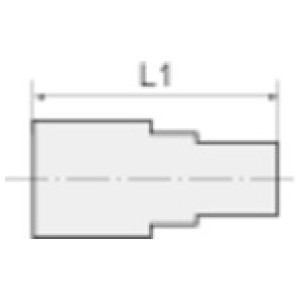

| L1 [mm] | 32.0 |
| a/f [mm] | 16 |
| Material | Nickel-plated brass |
