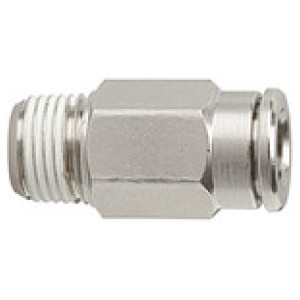

Ravni pot.i fiting Metallica R 1/4, Cev zunanja Ø 10
SKU: 108888RIE
EAN: 4047322278966
Straight push-in fitting »metallica«, R 1/4 o., for hose exterior Ø 10 mm, Working pressure -0.98 to 16 bar, nickel-plated brass
"All parts with a parallel thread are supplied with an FPM O-ring while the conical threads are coated with preCOTE 5 dispersion
Opis
Straight push-in fitting »metallica«, R 1/4 o., for hose exterior Ø 10 mm, Working pressure -0.98 to 16 bar, nickel-plated brass
"All parts with a parallel thread are supplied with an FPM O-ring while the conical threads are coated with preCOTE 5 dispersion
Tehnični podatki in specifikacije
Serija | metallica |
Min. delovni tlak [bar] | -0.98 |
Max. delovni tlak [bar] | 16 |
Min. delovna temperatura [°C] | -20 |
Max. delovna temperatura [°C] | 150 |
Priporočena cev | PA and PU |
Rokav | Nickel-plated brass |
Vpenjalni obroč | Male connector, conical male thread, coated with outer hex |
Navoj | R 1/4 |
Za cevi O.D. [mm] | 10 |
L1 [mm] | 32.5 |
a/f [mm] | 16 |
Material | Nickel-plated brass |
