Ravni pot.i fiting univerzalne Short 1/8, hose8 slika
 Ravni pot.i fiting univerzalne Short 1/8, hose8 slika

* slike so simbolične

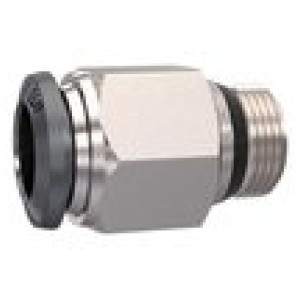

Ravni pot.i fiting univerzalne Short 1/8, hose8

SKU: 153282RIE
EAN: 4047322607926

Straight push-in fitting »universal short«, 1/8, hose-Ø 8, taper seat, Working pressure -0,99 to 20 bar, nickel-plated brass

The quick-connect fittings of the »universal short« series are true to their name and are used for the quick and simple connection of hoses. The conical sealing threads off a high degree of flexibility, as it is compatible with both conical and cylindrical threads. Thus the quick-connect fitting can be combined with a wide variety of thread types (BSPP, BSPT, NPT, NPTF, PT, PF) of standards ISO 7.1 and ISO 228. Shorter assembly ties result from the reduced thread length. The smaller hole spacing, resulting from the reduction of the width across flats, enables installation in very tight spaces. This saves time and space.

The complete sealing is also guaranteed on uneven, for example inclined, concave or convex surfaces, and with differing radii and chamfers. The special geometry of the seal enables vacuum applications.

Areas of application: Pneumatic automation, automotive industry, textile and packaging industry, compressed air circuits, vacuum applications.

Čas dobave 3 - 5 dni
3,67 €
Primerjaj z ostalimi
Šifra Navoj Šestkotna glava vtičnice [mm] Za cevi O.D. [mm] a/f [mm] L1 [mm] Zaloga Cena Nakup Natisni
153291RIE 01. Feb 8 10 21 26.0
Čas dobave 3 - 5 dni
5,53 € Natisni
153284RIE 01. Apr 6 8 14 22.0
Čas dobave 3 - 5 dni
3,75 € Natisni
153287RIE 03. Aug 6 8 17 23.0
Čas dobave 3 - 5 dni
4,16 € Natisni
153283RIE 01. Apr 4 6 14 21.0
Čas dobave 3 - 5 dni
3,53 € Natisni
153289RIE 01. Feb 4 6 21 23.5
Čas dobave 3 - 5 dni
4,83 € Natisni
153286RIE 03. Aug 4 6 17 23.0
Čas dobave 3 - 5 dni
3,99 € Natisni
153282RIE 01. Aug 5 8 14 24.5
Čas dobave 3 - 5 dni
3,67 € Natisni
153281RIE 01. Aug 4 6 13 21.5
Čas dobave 3 - 5 dni
3,29 € Natisni
153288RIE 03. Aug 8 10 17 25.5
Čas dobave 3 - 5 dni
4,93 € Natisni
153285RIE 01. Apr 7 10 17 28.0
Čas dobave 3 - 5 dni
4,79 € Natisni
153290RIE 01. Feb 6 8 21 23.5
Čas dobave 3 - 5 dni
4,93 € Natisni

Opis

Straight push-in fitting »universal short«, 1/8, hose-Ø 8, taper seat, Working pressure -0,99 to 20 bar, nickel-plated brass

The quick-connect fittings of the »universal short« series are true to their name and are used for the quick and simple connection of hoses. The conical sealing threads off a high degree of flexibility, as it is compatible with both conical and cylindrical threads. Thus the quick-connect fitting can be combined with a wide variety of thread types (BSPP, BSPT, NPT, NPTF, PT, PF) of standards ISO 7.1 and ISO 228. Shorter assembly ties result from the reduced thread length. The smaller hole spacing, resulting from the reduction of the width across flats, enables installation in very tight spaces. This saves time and space.

The complete sealing is also guaranteed on uneven, for example inclined, concave or convex surfaces, and with differing radii and chamfers. The special geometry of the seal enables vacuum applications.

Areas of application: Pneumatic automation, automotive industry, textile and packaging industry, compressed air circuits, vacuum applications.

Tehnični podatki in specifikacije

Serija universal short
Min. delovni tlak [bar] -0.99
Max. delovni tlak [bar] 20
Min. delovna temperatura [°C] -20
Max. delovna temperatura [°C] 80
Tesnilo NBR
Priporočena cev PA, PU, PTFE
Vpenjalo Stainless steel
Rokav POM
Navoj 01. Aug
Za cevi O.D. [mm] 8

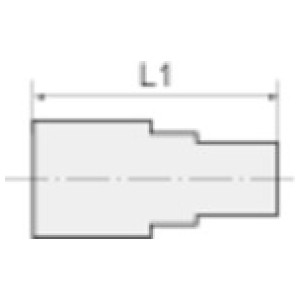

L1 [mm] 24.5
a/f [mm] 14
Šestkotna glava vtičnice [mm] 5
Material Nickel-plated brass
