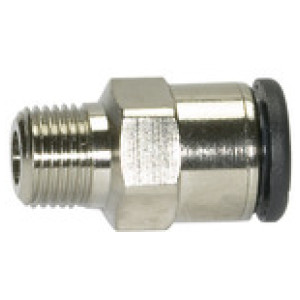

Ravni potisni fiting »Click klak« R 1/2 o., Cev ext. Ø 12
SKU: 108593RIE
EAN: 4047322208307
Straight push-in fitting »click-clock«, R 1/2 o., for hose exterior Ø 12, Working pressure -0.99 to 16 bar, nickel-plated brass
The advanced version of our highly successful push-in fittings series manufactured in nickel-plated brass.
Advantages of this new, optimised series:
- Much easier connection and disconnection of the hose, even with repeated mounting
- Can also be used for non-calibrated hoses
- Suitable for vacuum operation
Čas dobave: Predvidoma 3 - 5 dni
5,14 €
| Šifra | Navoj | Šestkotna glava vtičnice [mm] | Za cevi O.D. [mm] | a/f [mm] | L1 [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|
| 108586RIE | R 1/8 | 5 | 8 | 13 | 26.0 | Čas dobave: Predvidoma 3 - 5 dni | 2,06 € |  | |
| 108587RIE | R 1/4 | 4 | 6 | 12 | 22.3 | Čas dobave: Predvidoma 3 - 5 dni | 2,15 € | | |
| 108591RIE | R 3/8 | 7 | 10 | 16 | 28.9 | Čas dobave: Predvidoma 3 - 5 dni | 3,75 € | | |
| 108588RIE | R 1/4 | 6 | 8 | 14 | 25.5 | Čas dobave: Predvidoma 3 - 5 dni | 2,27 € | | |
| 108590RIE | R 3/8 | 6 | 8 | 14 | 24.9 | Čas dobave: Predvidoma 3 - 5 dni | 3,45 € | | |
| 108592RIE | R 3/8 | 10 | 12 | 19 | 27.0 | Čas dobave: Predvidoma 3 - 5 dni | 4,62 € | | |
| 108584RIE | R 1/8 | 3 | 4 | 10 | 18.5 | Čas dobave: Predvidoma 3 - 5 dni | 1,99 € | | |
| 108589RIE | R 1/4 | 7 | 10 | 16 | 28.9 | Čas dobave: Predvidoma 3 - 5 dni | 3,55 € | | |
| 108585RIE | R 1/8 | 4 | 6 | 12 | 22.5 | Čas dobave: Predvidoma 3 - 5 dni | 2,00 € | | |
| 108593RIE | R 1/2 | 10 | 12 | 19 | 26.6 | Čas dobave: Predvidoma 3 - 5 dni | 5,14 € | |
Opis
Straight push-in fitting »click-clock«, R 1/2 o., for hose exterior Ø 12, Working pressure -0.99 to 16 bar, nickel-plated brass
The advanced version of our highly successful push-in fittings series manufactured in nickel-plated brass.
Advantages of this new, optimised series:
- Much easier connection and disconnection of the hose, even with repeated mounting
- Can also be used for non-calibrated hoses
- Suitable for vacuum operation
Tehnični podatki in specifikacije
| Serija | click-clock |
| Min. delovni tlak [bar] | -0.99 |
| Max. delovni tlak [bar] | 16 |
| Min. delovna temperatura [°C] | -20 |
| Max. delovna temperatura [°C] | 80 |
| Priporočena cev | PA, PU |
| Rokav | Hostaform |
| Vpenjalni obroč | Stainless steel |
| Navoj | R 1/2 |
| Za cevi O.D. [mm] | 12 |

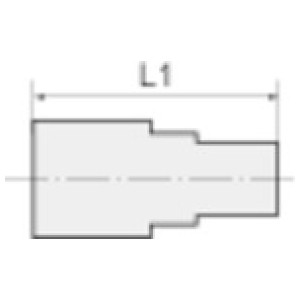

| L1 [mm] | 26.6 |
| a/f [mm] | 19 |
| Šestkotna glava vtičnice [mm] | 10 |
| Material | Nickel-plated brass |
