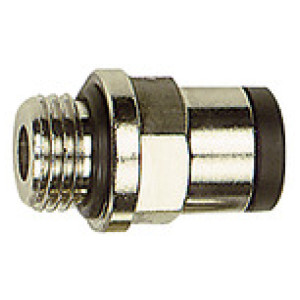

Ravni potisni fiting »klik klak« G 3/8 o., Cev zunanja Ø8
SKU: 108564RIE
EAN: 4047322208772
Straight push-in fitting »click-clock«, G 3/8 o., for hose exterior Ø 8 mm, Working pressure -0.99 to 16 bar, nickel-plated brass
The advanced version of our highly successful push-in fittings series manufactured in nickel-plated brass.
Advantages of this new, optimised series:
- Much easier connection and disconnection of the hose, even with repeated mounting
- Can also be used for non-calibrated hoses
- Suitable for vacuum operation
Čas dobave: Predvidoma 3 - 5 dni
3,12 €
| Šifra | Navoj | Rokav | Zunanji šesterokotnik | Šestkotna glava vtičnice [mm] | Za cevi O.D. [mm] | a/f [mm] | L1 [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 108556RIE | G 1/8 | Hostaform | Out | 4 | 6 | 12 | 21.6 | Čas dobave: Predvidoma 3 - 5 dni | 2,39 € |  | |
| 108561RIE | G 1/4 | Hostaform | Out | 6 | 8 | 14 | 24.4 | Čas dobave: Predvidoma 3 - 5 dni | 2,57 € | | |
| 108569RIE | G 1/2 | Hostaform | Out | 10 | 12 | 19 | 29.3 | Čas dobave: Predvidoma 3 - 5 dni | 5,17 € | | |
| 108557RIE | G 1/8 | Hostaform | Out | 5 | 8 | 13 | 25.4 | Čas dobave: Predvidoma 3 - 5 dni | 2,49 € | | |
| 108568RIE | G 1/2 | Hostaform | Out | 8 | 10 | 16 | 29.8 | Čas dobave: Predvidoma 3 - 5 dni | 4,31 € | | |
| 108547RIE | M3 | Nickel-plated brass | Without | 1.5 | 3 | Ø 5.8 | 12.6 | Čas dobave: Predvidoma 3 - 5 dni | 2,99 € | | |
| 108549RIE | M5 | Hostaform | Without | 2.5 | 4 | Ø 9 | 20.3 | Čas dobave: Predvidoma 3 - 5 dni | 2,39 € | | |
| 108565RIE | G 3/8 | Hostaform | Out | 8 | 10 | 16 | 26.5 | Čas dobave: Predvidoma 3 - 5 dni | 4,12 € | | |
| 108548RIE | M5 | Nickel-plated brass | Without | 2 | 3 | Ø 5.8 | 13.0 | Čas dobave: Predvidoma 3 - 5 dni | 2,99 € | | |
| 108562RIE | G 1/4 | Hostaform | Out | 7 | 10 | 16 | 29.2 | Čas dobave: Predvidoma 3 - 5 dni | 3,49 € | | |
| 108567RIE | G 3/8 | Hostaform | Out | 10 | 14 | 22 | 33.8 | Čas dobave: Predvidoma 3 - 5 dni | 4,98 € | | |
| 108552RIE | M7 | Hostaform | Without | 3 | 4 | Ø 9 | 18.9 | Čas dobave: Predvidoma 3 - 5 dni | 2,99 € | | |
| 108558RIE | G 1/4 | Hostaform | Out | 3 | 4 | 10 | 19.8 | Čas dobave: Predvidoma 3 - 5 dni | 2,54 € | | |
| 108560RIE | G 1/4 | Hostaform | Out | 4 | 6 | 12 | 20.3 | Čas dobave: Predvidoma 3 - 5 dni | 2,49 € | | |
| 108570RIE | G 1/2 | Hostaform | Out | 12 | 14 | 22 | 31.5 | Čas dobave: Predvidoma 3 - 5 dni | 5,10 € | | |
| 108551RIE | M5 | Hostaform | Without | 2.5 | 6 | Ø 11 | 21.9 | Čas dobave: Predvidoma 3 - 5 dni | 2,39 € | | |
| 108554RIE | G 1/8 | Hostaform | Out | 3 | 4 | 10 | 18.0 | Čas dobave: Predvidoma 3 - 5 dni | 2,39 € | | |
| 108553RIE | M7 | Hostaform | Without | 4 | 6 | Ø 11 | 23.0 | Čas dobave: Predvidoma 3 - 5 dni | 2,99 € | | |
| 108555RIE | G 1/8 | Hostaform | Out | 3 | 5 | 13 | 22.0 | Čas dobave: Predvidoma 3 - 5 dni | 2,28 € | | |
| 108559RIE | G 1/4 | Hostaform | Out | 3 | 5 | 12 | 24.0 | Čas dobave: Predvidoma 3 - 5 dni | 2,96 € | | |
| 108563RIE | G 1/4 | Hostaform | Out | 7 | 12 | 19 | 30.5 | Čas dobave: Predvidoma 3 - 5 dni | 4,51 € | | |
| 108566RIE | G 3/8 | Hostaform | Out | 10 | 12 | 19 | 28.1 | Čas dobave: Predvidoma 3 - 5 dni | 5,28 € | | |
| 108550RIE | M5 | Hostaform | Without | 2.5 | 5 | Ø 12 | 22.5 | Čas dobave: Predvidoma 3 - 5 dni | 2,96 € | | |
| 108564RIE | G 3/8 | Hostaform | Out | 6 | 8 | 14 | 22.8 | Čas dobave: Predvidoma 3 - 5 dni | 3,12 € | |
Opis
Straight push-in fitting »click-clock«, G 3/8 o., for hose exterior Ø 8 mm, Working pressure -0.99 to 16 bar, nickel-plated brass
The advanced version of our highly successful push-in fittings series manufactured in nickel-plated brass.
Advantages of this new, optimised series:
- Much easier connection and disconnection of the hose, even with repeated mounting
- Can also be used for non-calibrated hoses
- Suitable for vacuum operation
Tehnični podatki in specifikacije
| Serija | click-clock |
| Min. delovni tlak [bar] | -0.99 |
| Max. delovni tlak [bar] | 16 |
| Min. delovna temperatura [°C] | -20 |
| Max. delovna temperatura [°C] | 80 |
| Priporočena cev | PA, PU |
| Rokav | Hostaform |
| Vpenjalni obroč | Stainless steel |
| Navoj | G 3/8 |
| Za cevi O.D. [mm] | 8 |

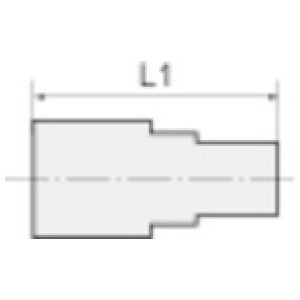

| L1 [mm] | 22.8 |
| a/f [mm] | 14 |
| Šestkotna glava vtičnice [mm] | 6 |
| Zunanji šesterokotnik | Out |
| Material | Nickel-plated brass |
