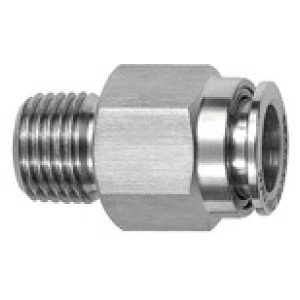

Ravni potisni fiting R 1/4 o., Za cev zunanji Ø 10 mm
SKU: 135081RIE
EAN: 4047322492881
Straight push-in fitting, Exterior hexagonal, R 1/4 o., for hose exterior Ø 10 mm, Working pressure -0.98 - 20 bar, 1.4404
For use in more aggressive environments and corrosive media.
The suitability test for the individual application is the user's responsibility.
Čas dobave: Predvidoma 3 - 5 dni
31,33 €
| Šifra | Navoj | Za cevi O.D. [mm] | a/f [mm] | L1 [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|
| 135087RIE | R 1/2 | 10 | 22 | 27.8 | Čas dobave: Predvidoma 3 - 5 dni | 53,97 € |  | |
| 135086RIE | R 3/8 | 14 | 22 | 32.7 | Čas dobave: Predvidoma 3 - 5 dni | 69,93 € | | |
| 135075RIE | R 1/8 | 4 | 11 | 22.6 | Čas dobave: Predvidoma 3 - 5 dni | 19,46 € | | |
| 135089RIE | R 1/2 | 14 | 22 | 34.5 | Čas dobave: Predvidoma 3 - 5 dni | 74,90 € | | |
| 135084RIE | R 3/8 | 10 | 17 | 26.8 | Čas dobave: Predvidoma 3 - 5 dni | 39,37 € | | |
| 135085RIE | R 3/8 | 12 | 21 | 28.2 | Čas dobave: Predvidoma 3 - 5 dni | 55,40 € | | |
| 135077RIE | R 1/8 | 8 | 14 | 26.3 | Čas dobave: Predvidoma 3 - 5 dni | 23,90 € | | |
| 135080RIE | R 1/4 | 8 | 14 | 26.3 | Čas dobave: Predvidoma 3 - 5 dni | 25,52 € | | |
| 135088RIE | R 1/2 | 12 | 22 | 29.3 | Čas dobave: Predvidoma 3 - 5 dni | 57,82 € | | |
| 135078RIE | R 1/4 | 4 | 14 | 23.3 | Čas dobave: Predvidoma 3 - 5 dni | 23,01 € | | |
| 135090RIE | R 1/2 | 16 | 24 | 33.6 | Čas dobave: Predvidoma 3 - 5 dni | 80,41 € | | |
| 135076RIE | R 1/8 | 6 | 13 | 25.0 | Čas dobave: Predvidoma 3 - 5 dni | 20,31 € | | |
| 135079RIE | R 1/4 | 6 | 14 | 25.5 | Čas dobave: Predvidoma 3 - 5 dni | 21,15 € | | |
| 135083RIE | R 3/8 | 8 | 17 | 24.3 | Čas dobave: Predvidoma 3 - 5 dni | 37,98 € | | |
| 135082RIE | R 1/4 | 12 | 19 | 31.0 | Čas dobave: Predvidoma 3 - 5 dni | 43,74 € | | |
| 135081RIE | R 1/4 | 10 | 17 | 29.3 | Čas dobave: Predvidoma 3 - 5 dni | 31,33 € | |
Opis
Straight push-in fitting, Exterior hexagonal, R 1/4 o., for hose exterior Ø 10 mm, Working pressure -0.98 - 20 bar, 1.4404
For use in more aggressive environments and corrosive media.
The suitability test for the individual application is the user's responsibility.
Tehnični podatki in specifikacije
| Min. delovni tlak [bar] | -0.98 |
| Max. delovni tlak [bar] | 20 |
| Min. delovna temperatura [°C] | -20 |
| Max. delovna temperatura [°C] | 150 |
| Min. temperatura medija [°C] | -20 |
| Max. temperatura medija [°C] | 150 |
| Primerni materiali za cevi | PVDF, PTFE, PA, PU |
| Navoj | R 1/4 |
| Za cevi O.D. [mm] | 10 |
| L1 [mm] | 29.3 |
| a/f [mm] | 17 |
| Standardni navoj | ISO 7-1 |
| Material | Stainless steel 1.4404 |
