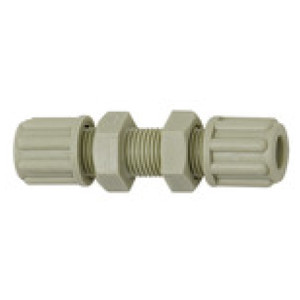

Ravni pregradni priključek, M10x1, za za cev 4/6 mm, AF 14, PP
SKU: 110892RIE
EAN: 4047322027601
Straight bulkhead connector, M10x1, for hose 4/6 mm, AF 14, Working pressure max. 10 bar (20 °C)/max. 2.5 bar (90 °C), PP
Chemically resistant to almost all inorganic acids and bases, even in high concentrations and at temperatures greater than 90 °C.
Čas dobave: Predvidoma 3 - 5 dni
6,98 €
| Šifra | Navoj | Za cevi [mm] | a/f [mm] | L1 [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|
| 110893RIE | M14x1.5 | 6/8 | 19 | 64.0 | Čas dobave: Predvidoma 3 - 5 dni | 11,02 € |  | |
| 110894RIE | M16x1.5 | 8/10 | 22 | 73.0 | Čas dobave: Predvidoma 3 - 5 dni | 14,68 € | | |
| 110895RIE | M18x1.5 | 9/12 | 24 | 84.0 | Čas dobave: Predvidoma 3 - 5 dni | 27,60 € | | |
| 110892RIE | M10x1.0 | 4/6 | 14 | 53.0 | Čas dobave: Predvidoma 3 - 5 dni | 6,98 € | |
Opis
Straight bulkhead connector, M10x1, for hose 4/6 mm, AF 14, Working pressure max. 10 bar (20 °C)/max. 2.5 bar (90 °C), PP
Chemically resistant to almost all inorganic acids and bases, even in high concentrations and at temperatures greater than 90 °C.
Tehnični podatki in specifikacije
| Max. delovni tlak pri 20 ° C [bar] | 10 |
| Max. delovna temperatura [°C] | 90 |
| Max. delovni tlak pri 90 ° C [bar] | 2.5 |
| Navoj | M10x1.0 |
| Za cevi [mm] | 4/6 |
| L1 [mm] | 53.0 |
| a/f [mm] | 14 |
| Material | Polypropylene (PP) |
