* slike so simbolične

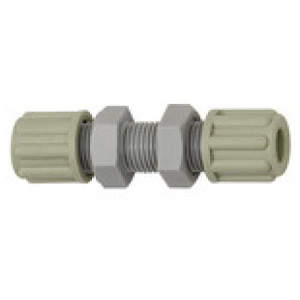

Ravni pregradni priključek, M16x1.5, za za cev 8/10 mm, AF 22, PA
SKU: 110842RIE
EAN: 4047322027649
Straight bulkhead connector, M16x1.5, for hose 8/10 mm, AF 22, Working pressure max. 10 bar (20 °C)/max. 1 bar (60 °C), PA
Manufactured from high impact-resistant, UV-stabilised engineering plastic, extremely resistant to weathering.
Good chemical resistance to benzine, diesel oil, fuel oil and alkalis. Not suitable for use with acids.
Čas dobave 3 - 5 dni
6,08 €
| Šifra | Navoj | Za cevi [mm] | a/f [mm] | L1 [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|
| 110843RIE | M18x1.5 | 9/12 | 24 | 84.0 | Čas dobave 3 - 5 dni | 13,36 € |  | |
| 110840RIE | M10x1.0 | 4/6 | 14 | 53.0 | Čas dobave 3 - 5 dni | 3,14 € | | |
| 110842RIE | M16x1.5 | 8/10 | 22 | 73.0 | Čas dobave 3 - 5 dni | 6,08 € | | |
| 110841RIE | M14x1.5 | 6/8 | 19 | 64.0 | Čas dobave 3 - 5 dni | 4,77 € | |
Opis
Straight bulkhead connector, M16x1.5, for hose 8/10 mm, AF 22, Working pressure max. 10 bar (20 °C)/max. 1 bar (60 °C), PA
Manufactured from high impact-resistant, UV-stabilised engineering plastic, extremely resistant to weathering.
Good chemical resistance to benzine, diesel oil, fuel oil and alkalis. Not suitable for use with acids.
Tehnični podatki in specifikacije
| Max. delovni tlak pri 20 ° C [bar] | 10 |
| Max. delovni tlak pri 60 ° C [bar] | 1 |
| Navoj | M16x1.5 |
| Za cevi [mm] | 8/10 |

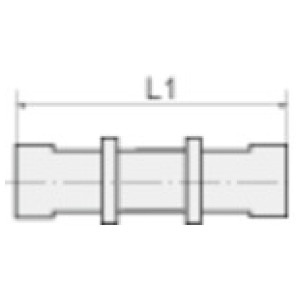

| L1 [mm] | 73.0 |
| a/f [mm] | 22 |
| Telo vijačnega priključka | Polyamide (PA) |
| Vpenjalni obroč | Polypropylene (PP) |
| Narezana matica | Polypropylene (PP) |
