* slike so simbolične

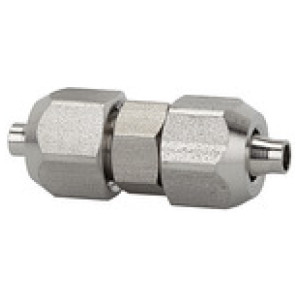

Ravni priključek, za za cev 8/6 mm, AF1 14, AF2 12
SKU: 110695RIE
EAN: 4047322269193
Straight connector, for hose 8/6 mm, AF1 14, AF2 12, Pressure range max. 25 bar, Temp. -40 °C to 200 °C Stainless steel 1.4404
Supplied without seals. For use with corrosive media and at high temperatures.
Screw fitting series made of stainless steel for all applications where compliance with strict tightness, pressure and temperature requirements is essential.
The parts are manufactured without rubber seals, in other words they are ideal for very high temperatures or for use with corrosive liquids, e.g. in cases when FPM is no longer suitable.

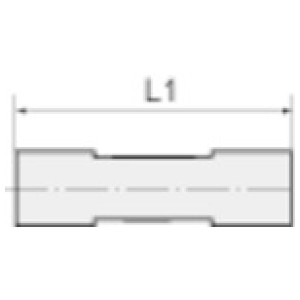

| Šifra | Za cevi [mm] | a/f 2 [mm] | a/f 1 [mm] | L1 [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|
| 110696RIE | 10/8 | 14 | 16 | 39.0 | Čas dobave: Predvidoma 3 - 5 dni | 30,27 € |  | |
| 110694RIE | 6/4 | 10 | 12 | 34.0 | Čas dobave: Predvidoma 3 - 5 dni | 19,58 € | | |
| 110695RIE | 8/6 | 12 | 14 | 35.0 | Čas dobave: Predvidoma 3 - 5 dni | 22,03 € | |
Opis
Straight connector, for hose 8/6 mm, AF1 14, AF2 12, Pressure range max. 25 bar, Temp. -40 °C to 200 °C Stainless steel 1.4404
Supplied without seals. For use with corrosive media and at high temperatures.
Screw fitting series made of stainless steel for all applications where compliance with strict tightness, pressure and temperature requirements is essential.
The parts are manufactured without rubber seals, in other words they are ideal for very high temperatures or for use with corrosive liquids, e.g. in cases when FPM is no longer suitable.
Tehnični podatki in specifikacije
| Min. temperaturno območje [°C] | -40 |
| Max. delovni tlak [bar] | 25 |
| Max. temperaturno območje [°C] | 200 |
| Material | Stainless steel 1.4404 |
| Tesnilo | Pure metal |
| Priporočena cev | PTFE hose |
| Za cevi [mm] | 8/6 |
| L1 [mm] | 35.0 |
| a/f 1 [mm] | 14 |
| a/f 2 [mm] | 12 |
