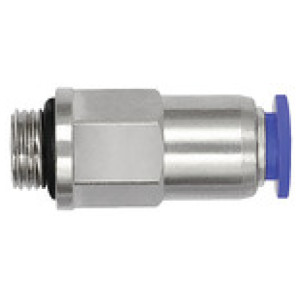

Ravni protipovratni ventil blue serija, Hose, da nit, G 1/8  slika
 Ravni protipovratni ventil blue serija, Hose, da nit, G 1/8  slika
 Ravni protipovratni ventil blue serija, Hose, da nit, G 1/8  slika

* slike so simbolične

Ravni protipovratni ventil blue serija, Hose, da nit, G 1/8

SKU: 151356RIE
EAN: 4047322592024
Straight Check valve »Blue Series«, Hose to thread, G 1/8 o., for hose exterior Ø 8 mm, pmax 10 bar

The non-return function of these push-in fittings prevents the air from flowing back, the unidirectional design means air flow is only possible in one direction.

These valves are available with air flow from the port to the tube or from the tube to the port.

Čas dobave: Predvidoma 3 - 5 dni
Pošljite povpraševanje
Primerjaj z ostalimi
Šifra Navoj Za cevi O.D. [mm] a/f [mm] L1 [mm] Zaloga Cena Nakup Natisni
151357RIE G 1/4 6 15 32.5
Čas dobave: Predvidoma 3 - 5 dni
? Povpraševanje Natisni
151356RIE G 1/8 8 14 34.8
Čas dobave: Predvidoma 3 - 5 dni
? Povpraševanje Natisni
151355RIE G 1/8 6 12 32.5
Čas dobave: Predvidoma 3 - 5 dni
? Povpraševanje Natisni
151358RIE G 1/4 8 15 36.9
Čas dobave: Predvidoma 3 - 5 dni
? Povpraševanje Natisni

Opis

Straight Check valve »Blue Series«, Hose to thread, G 1/8 o., for hose exterior Ø 8 mm, pmax 10 bar

The non-return function of these push-in fittings prevents the air from flowing back, the unidirectional design means air flow is only possible in one direction.

These valves are available with air flow from the port to the tube or from the tube to the port.

Tehnični podatki in specifikacije

Serija Blue series
Min. tlak odpiranja [bar] 0.2
Max. delovni tlak [bar] 10
Max. temperaturno območje [°C] 60
Srednje Compressed air
Priporočena cev PU or PA (nylon)
Rokav Plastic blue
Navoj G 1/8
Za cevi O.D. [mm] 8
L1 [mm] 34.8
a/f [mm] 14
Standardni navoj DIN EN ISO 228-1
Material Plastic and nickel-plated brass
