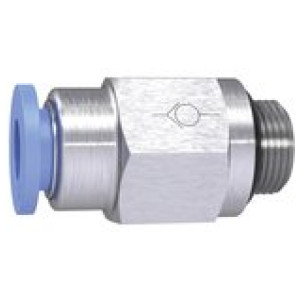

Ravni protipovratni ventil blue serija, Hose, da nit, G 3/8
SKU: 151515RIE
EAN: 4047322593717

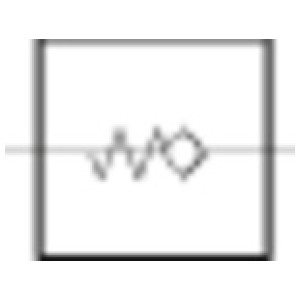

Straight Check valve »Blue Series«, Hose to thread, G 3/8 o., for hose exterior Ø 10 mm, pmax 10 barThe non-return function of these push-in fittings prevents the air from flowing back, the unidirectional design means air flow is only possible in one direction.
These valves are available with air flow from the port to the tube or from the tube to the port.
Šifra | Navoj | Standardni navoj | Za cevi O.D. [mm] | a/f [mm] | L1 [mm] | Zaloga | Cena | Nakup | Natisni |
---|---|---|---|---|---|---|---|---|---|
151518RIE | G 1/2 | DIN EN ISO 228-1 | 12 | 24 | 44.5 | Čas dobave: Predvidoma 3 - 5 dni | 19,06 € | ||
151513RIE | G 1/4 | DIN EN ISO 228-1 | 6 | 17 | 30.0 | Čas dobave: Predvidoma 3 - 5 dni | 11,50 € | ||
151512RIE | G 1/8 | DIN EN ISO 228-1 | 8 | 14 | 33.0 | Čas dobave: Predvidoma 3 - 5 dni | 7,70 € | ||
151516RIE | G 3/8 | DIN EN ISO 228-1 | 12 | 20 | 44.5 | Čas dobave: Predvidoma 3 - 5 dni | 16,75 € | ||
151509RIE | M5 | DIN 13-1 | 4 | 10 | 33.0 | Čas dobave: Predvidoma 3 - 5 dni | 5,54 € | ||
151511RIE | G 1/8 | DIN EN ISO 228-1 | 6 | 14 | 30.0 | Čas dobave: Predvidoma 3 - 5 dni | 6,61 € | ||
151517RIE | G 1/2 | DIN EN ISO 228-1 | 10 | 24 | 41.0 | Čas dobave: Predvidoma 3 - 5 dni | 16,25 € | ||
151514RIE | G 1/4 | DIN EN ISO 228-1 | 8 | 17 | 35.5 | Čas dobave: Predvidoma 3 - 5 dni | 11,64 € | ||
151510RIE | G 1/8 | DIN EN ISO 228-1 | 4 | 14 | 28.0 | Čas dobave: Predvidoma 3 - 5 dni | 6,55 € | ||
151515RIE | G 3/8 | DIN EN ISO 228-1 | 10 | 20 | 41.0 | Čas dobave: Predvidoma 3 - 5 dni | 14,59 € |
Opis
The non-return function of these push-in fittings prevents the air from flowing back, the unidirectional design means air flow is only possible in one direction.
These valves are available with air flow from the port to the tube or from the tube to the port.
Tehnični podatki in specifikacije
Serija | Blue series |
Min. tlak odpiranja [bar] | 0.2 |
Max. delovni tlak [bar] | 10 |
Max. temperaturno območje [°C] | 60 |
Tesnilo | NBR |
Srednje | Compressed air |
Priporočena cev | PU or PA (nylon) |
Rokav | Plastic blue |
Navoj | G 3/8 |
Za cevi O.D. [mm] | 10 |

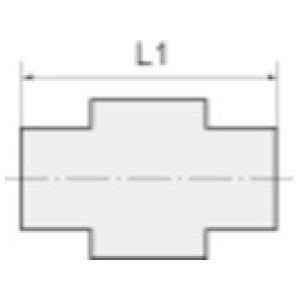

L1 [mm] | 41.0 |
a/f [mm] | 20 |
Standardni navoj | DIN EN ISO 228-1 |
Material | Plastic and nickel-plated brass |
