* slike so simbolične

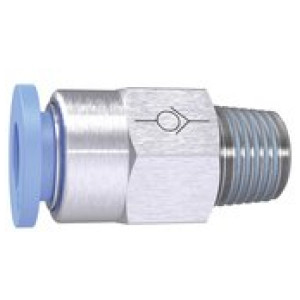

Ravni protipovratni ventil Blue serija, navojev na cevi, R 3/8
SKU: 151506RIE
EAN: 4047322593625
Straight Check valve »Blue Series«, Thread to hose, R 3/8 o., for hose exterior Ø 12 mm, pmax 10 barThe non-return function of these push-in fittings prevents the air from flowing back, the unidirectional design means air flow is only possible in one direction.
These valves are available with air flow from the port to the tube or from the tube to the port.
Čas dobave: Predvidoma 3 - 5 dni
13,87 €
| Šifra | Navoj | Za cevi O.D. [mm] | a/f [mm] | L1 [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|
| 151500RIE | R 1/8 | 4 | 10 | 28.0 | Čas dobave: Predvidoma 3 - 5 dni | 5,54 € |  | |
| 151504RIE | R 1/4 | 8 | 14 | 35.5 | Čas dobave: Predvidoma 3 - 5 dni | 9,64 € | | |
| 151505RIE | R 3/8 | 10 | 17 | 41.0 | Čas dobave: Predvidoma 3 - 5 dni | 12,03 € | | |
| 151502RIE | R 1/8 | 8 | 14 | 33.0 | Čas dobave: Predvidoma 3 - 5 dni | 6,98 € | | |
| 151507RIE | R 1/2 | 10 | 21 | 41.0 | Čas dobave: Predvidoma 3 - 5 dni | 16,75 € | | |
| 151503RIE | R 1/4 | 6 | 14 | 30.0 | Čas dobave: Predvidoma 3 - 5 dni | 9,50 € | | |
| 151508RIE | R 1/2 | 12 | 21 | 44.5 | Čas dobave: Predvidoma 3 - 5 dni | 18,78 € | | |
| 151501RIE | R 1/8 | 6 | 12 | 30.0 | Čas dobave: Predvidoma 3 - 5 dni | 5,61 € | | |
| 151506RIE | R 3/8 | 12 | 21 | 44.5 | Čas dobave: Predvidoma 3 - 5 dni | 13,87 € | |
Opis
The non-return function of these push-in fittings prevents the air from flowing back, the unidirectional design means air flow is only possible in one direction.
These valves are available with air flow from the port to the tube or from the tube to the port.
Tehnični podatki in specifikacije
| Serija | Blue series |
| Min. tlak odpiranja [bar] | 0.2 |
| Max. delovni tlak [bar] | 10 |
| Max. temperaturno območje [°C] | 60 |
| Tesnilo | NBR |
| Srednje | Compressed air |
| Priporočena cev | PU or PA (nylon) |
| Rokav | Plastic blue |
| Navoj | R 3/8 |
| Za cevi O.D. [mm] | 12 |
| L1 [mm] | 44.5 |
| a/f [mm] | 21 |
| Standardni navoj | ISO 7-1 |
| Material | Plastic and nickel-plated brass |
