* slike so simbolične

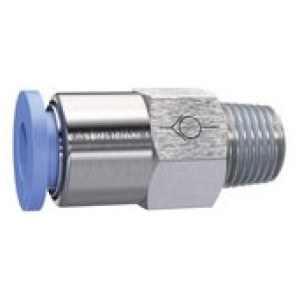

Ravni protipovratni ventil Blue serija, UHQDŀQL navojem R 3/8
SKU: 151525RIE
EAN: 4047322593816

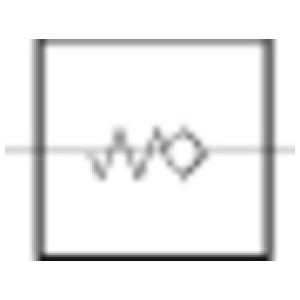

Straight Check valve »Blue Series«, Hose to thread, R 3/8 o., for hose exterior Ø 12 mm, pmax 10 barThe non-return function of these push-in fittings prevents the air from flowing back, the unidirectional design means air flow is only possible in one direction.
These valves are available with air flow from the port to the tube or from the tube to the port.
Čas dobave 3 - 5 dni
13,87 €
| Šifra | Navoj | Za cevi O.D. [mm] | a/f [mm] | L1 [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|
| 151525RIE | R 3/8 | 12 | 21 | 44.5 | Čas dobave 3 - 5 dni | 13,87 € |  | |
| 151520RIE | R 1/8 | 6 | 12 | 30.0 | Čas dobave 3 - 5 dni | 5,61 € | | |
| 151522RIE | R 1/4 | 6 | 14 | 30.0 | Čas dobave 3 - 5 dni | 9,50 € | | |
| 151524RIE | R 3/8 | 10 | 17 | 41.0 | Čas dobave 3 - 5 dni | 12,03 € | | |
| 151526RIE | R 1/2 | 10 | 21 | 41.0 | Čas dobave 3 - 5 dni | 16,75 € | | |
| 151519RIE | R 1/8 | 4 | 10 | 28.0 | Čas dobave 3 - 5 dni | 5,54 € | | |
| 151527RIE | R 1/2 | 12 | 21 | 44.5 | Čas dobave 3 - 5 dni | 18,78 € | | |
| 151521RIE | R 1/8 | 8 | 14 | 33.0 | Čas dobave 3 - 5 dni | 6,98 € | | |
| 151523RIE | R 1/4 | 8 | 14 | 35.5 | Čas dobave 3 - 5 dni | 9,64 € | |
Opis
The non-return function of these push-in fittings prevents the air from flowing back, the unidirectional design means air flow is only possible in one direction.
These valves are available with air flow from the port to the tube or from the tube to the port.
Tehnični podatki in specifikacije
| Serija | Blue series |
| Min. tlak odpiranja [bar] | 0.2 |
| Max. delovni tlak [bar] | 10 |
| Max. temperaturno območje [°C] | 60 |
| Tesnilo | NBR |
| Srednje | Compressed air |
| Priporočena cev | PU or PA (nylon) |
| Rokav | Plastic blue |
| Navoj | R 3/8 |
| Za cevi O.D. [mm] | 12 |
| L1 [mm] | 44.5 |
| a/f [mm] | 21 |
| Standardni navoj | ISO 7-1 |
| Material | Plastic and nickel-plated brass |
