* slike so simbolične

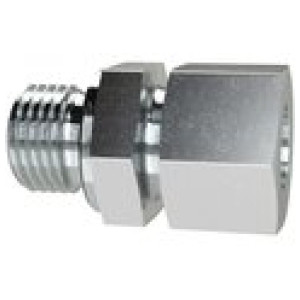

Ravni vijačni prik. M, 7/8-14 UNF , Ø16, galvan.jeklo
SKU: 159691RIE
EAN: 4047322643214
Straight screw-in fitting, 7/8-14 UNF o., Pipe exterior Ø 16 mm, PN max. 400 bar, A/F1 30, A/F2 27, galvanised steel, UNF threat
Male connector, male thread UNF, heavy type
Čas dobave: Predvidoma 3 - 5 dni
33,37 €

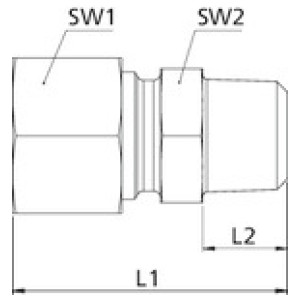

| Šifra | Navoj | L2 [mm] | O.D. cev [mm] | a/f 1 [mm] | a/f 2 [mm] | L1 [mm] | PN [bar] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 159689RIE | UNF 3/4-16 | 11.0 | 12 | 24 | 24 | 45.0 | 630 | Čas dobave: Predvidoma 3 - 5 dni | 25,88 € |  | |
| 159694RIE | UNF 1 1/16-12 | 15.0 | 20 | 36 | 32 | 57.0 | 400 | Čas dobave: Predvidoma 3 - 5 dni | 42,40 € | | |
| 159686RIE | UNF 7/16-20 | 9.0 | 8 | 19 | 17 | 39.0 | 630 | Čas dobave: Predvidoma 3 - 5 dni | 18,28 € | | |
| 159693RIE | UNF 7/8-14 | 12.7 | 20 | 36 | 32 | 54.7 | 400 | Čas dobave: Predvidoma 3 - 5 dni | 42,63 € | | |
| 159690RIE | UNF 3/4-16 | 11.0 | 16 | 30 | 24 | 45.0 | 400 | Čas dobave: Predvidoma 3 - 5 dni | 27,02 € | | |
| 159696RIE | UNF 1 5/16-12 | 15.0 | 25 | 46 | 41 | 62.0 | 400 | Čas dobave: Predvidoma 3 - 5 dni | 57,73 € | | |
| 159688RIE | UNF 9/16-18 | 10.0 | 12 | 24 | 22 | 41.0 | 630 | Čas dobave: Predvidoma 3 - 5 dni | 24,46 € | | |
| 159687RIE | UNF 9/16-18 | 10.0 | 10 | 22 | 19 | 41.0 | 630 | Čas dobave: Predvidoma 3 - 5 dni | 20,40 € | | |
| 159695RIE | UNF 1 1/16-12 | 15.0 | 25 | 46 | 36 | 62.0 | 400 | Čas dobave: Predvidoma 3 - 5 dni | 55,12 € | | |
| 159692RIE | UNF 3/4-16 | 11.0 | 20 | 36 | 32 | 53.0 | 400 | Čas dobave: Predvidoma 3 - 5 dni | 42,55 € | | |
| 159691RIE | UNF 7/8-14 | 12.7 | 16 | 30 | 27 | 49.7 | 400 | Čas dobave: Predvidoma 3 - 5 dni | 33,37 € | |
Opis
Straight screw-in fitting, 7/8-14 UNF o., Pipe exterior Ø 16 mm, PN max. 400 bar, A/F1 30, A/F2 27, galvanised steel, UNF threat
Male connector, male thread UNF, heavy type
Tehnični podatki in specifikacije
| Material | Galvanised steel (DIN 2353) |
| Navoj | UNF 7/8-14 |
| O.D. cev [mm] | 16 |
| L1 [mm] | 49.7 |
| L2 [mm] | 12.7 |
| a/f 1 [mm] | 30 |
| a/f 2 [mm] | 27 |
| PN [bar] | 400 |
