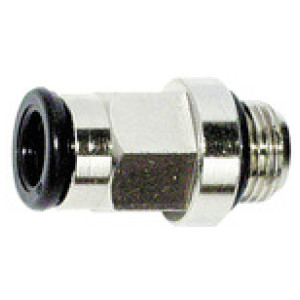

Ravni vijačni prik. Value line, G 1/4 , i Ø 8 slika
Ravni vijačni prik. Value line, G 1/4 , i Ø 8 slika

* slike so simbolične

Ravni vijačni prik. Value line, G 1/4 , i Ø 8

SKU: 115919RIE
EAN: 4047322183260

Straight screw-in fitting »value line«, G 1/4 o., for hose exterior Ø 8 mm, Working pressure -0,98 to 16 bar, nickel-plated brass

Low-priced yet very high-quality series of push-in fittings made of nickel-plated brass.

Compact, space-saving, lightweight design. An O-ring in the fillet at the end of the thread guarantees a tight connection for all male thread parts, even on rough surfaces.

Čas dobave: Predvidoma 3 - 5 dni
Pošljite povpraševanje
Primerjaj z ostalimi

Opis

Straight screw-in fitting »value line«, G 1/4 o., for hose exterior Ø 8 mm, Working pressure -0,98 to 16 bar, nickel-plated brass

Low-priced yet very high-quality series of push-in fittings made of nickel-plated brass.

Compact, space-saving, lightweight design. An O-ring in the fillet at the end of the thread guarantees a tight connection for all male thread parts, even on rough surfaces.

Tehnični podatki in specifikacije

Serija value line
Min. delovni tlak [bar] -0.98
Max. delovni tlak [bar] 16
Min. delovna temperatura [°C] -20
Max. delovna temperatura [°C] 80
Tesnilo NBR, silicone-free
Priporočena cev PA, PU
Vpenjalo Stainless steel AISI 316
Rokav Hostaform
Navoj G 1/4
Za cevi O.D. [mm] 8
L1 [mm] 25.0
a/f [mm] 13
Material Nickel-plated brass
