Ravni vijačni prik. Value line, G 1/8 , i Ø 8
SKU: 115922RIE
EAN: 4047322183239

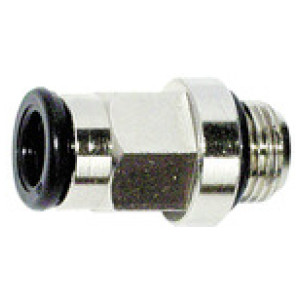

Straight screw-in fitting »value line«, G 1/8 o., for hose exterior Ø 8 mm, Working pressure -0,98 to 16 bar, nickel-plated brass
Low-priced yet very high-quality series of push-in fittings made of nickel-plated brass.
Compact, space-saving, lightweight design. An O-ring in the fillet at the end of the thread guarantees a tight connection for all male thread parts, even on rough surfaces.
| Šifra | Navoj | Rokav | Za cevi O.D. [mm] | a/f [mm] | L1 [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|
| 115918RIE | G 1/4 | Hostaform | 6 | 11 | 24.0 | Čas dobave: Predvidoma 3 - 5 dni | 1,82 € |  | |
| 115919RIE | G 1/4 | Hostaform | 8 | 13 | 25.0 | Čas dobave: Predvidoma 3 - 5 dni | 1,82 € | | |
| 115915RIE | G 1/2 | Black nickel-plated | 12 | 18 | 31.0 | Čas dobave: Predvidoma 3 - 5 dni | 3,81 € | | |
| 115925RIE | G 3/8 | Hostaform | 8 | 13 | 25.0 | Čas dobave: Predvidoma 3 - 5 dni | 2,39 € | | |
| 115912RIE | M5 | Hostaform | 4 | - | 20.5 | Čas dobave: Predvidoma 3 - 5 dni | 1,35 € | | |
| 115913RIE | M5 | Hostaform | 6 | - | 22.5 | Čas dobave: Predvidoma 3 - 5 dni | 1,44 € | | |
| 115921RIE | G 1/8 | Hostaform | 6 | 11 | 24.0 | Čas dobave: Predvidoma 3 - 5 dni | 1,59 € | | |
| 115917RIE | G 1/4 | Hostaform | 4 | 9 | 21.0 | Čas dobave: Predvidoma 3 - 5 dni | 1,73 € | | |
| 115916RIE | G 1/4 | Black nickel-plated | 10 | 16 | 29.5 | Čas dobave: Predvidoma 3 - 5 dni | ? | Povpraševanje | |
| 115923RIE | G 3/8 | Black nickel-plated | 10 | 16 | 29.5 | Čas dobave: Predvidoma 3 - 5 dni | ? | Povpraševanje | |
| 115920RIE | G 1/8 | Hostaform | 4 | 9 | 20.0 | Čas dobave: Predvidoma 3 - 5 dni | 1,44 € | | |
| 115914RIE | G 1/2 | Black nickel-plated | 10 | 16 | 30.0 | Čas dobave: Predvidoma 3 - 5 dni | ? | Povpraševanje | |
| 115924RIE | G 3/8 | Black nickel-plated | 12 | 18 | 31.0 | Čas dobave: Predvidoma 3 - 5 dni | 3,05 € | | |
| 115922RIE | G 1/8 | Hostaform | 8 | 13 | 26.5 | Čas dobave: Predvidoma 3 - 5 dni | 1,73 € | |
Opis
Straight screw-in fitting »value line«, G 1/8 o., for hose exterior Ø 8 mm, Working pressure -0,98 to 16 bar, nickel-plated brass
Low-priced yet very high-quality series of push-in fittings made of nickel-plated brass.
Compact, space-saving, lightweight design. An O-ring in the fillet at the end of the thread guarantees a tight connection for all male thread parts, even on rough surfaces.
Tehnični podatki in specifikacije
| Serija | value line |
| Min. delovni tlak [bar] | -0.98 |
| Max. delovni tlak [bar] | 16 |
| Min. delovna temperatura [°C] | -20 |
| Max. delovna temperatura [°C] | 80 |
| Tesnilo | NBR, silicone-free |
| Priporočena cev | PA, PU |
| Vpenjalo | Stainless steel AISI 316 |
| Rokav | Hostaform |
| Navoj | G 1/8 |
| Za cevi O.D. [mm] | 8 |
| L1 [mm] | 26.5 |
| a/f [mm] | 13 |
| Material | Nickel-plated brass |
