* slike so simbolične
Ravni vijak za prik. Value line, G 1/8 i., i Ø 4
SKU: 115929RIE
EAN: 4047322183338

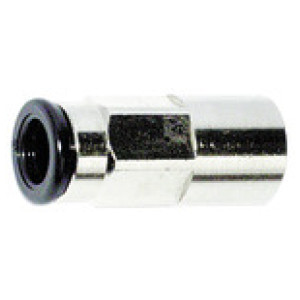

Straight screw-on fitting »value line«, G 1/8 i., for hose exterior Ø 4 mm, Working pressure -0.98 to 16 bar, nickel-plated brass
Low-priced yet very high-quality series of push-in fittings made of nickel-plated brass.
Compact, space-saving, lightweight design. An O-ring in the fillet at the end of the thread guarantees a tight connection for all male thread parts, even on rough surfaces.
Šifra | Navoj | Rokav | Za cevi O.D. [mm] | a/f [mm] | L1 [mm] | Zaloga | Cena | Nakup | Natisni |
---|---|---|---|---|---|---|---|---|---|
115927RIE | G 1/4 | Hostaform | 6 | 11 | 31.0 | Čas dobave: Predvidoma 3 - 5 dni | 2,93 € | | |
115930RIE | G 1/8 | Hostaform | 6 | 11 | 27.0 | Čas dobave: Predvidoma 3 - 5 dni | 2,09 € | | |
115931RIE | G 1/8 | Hostaform | 8 | 13 | 28.0 | Čas dobave: Predvidoma 3 - 5 dni | 2,48 € | | |
115928RIE | G 1/4 | Hostaform | 8 | 13 | 32.0 | Čas dobave: Predvidoma 3 - 5 dni | 2,60 € | | |
115926RIE | G 1/4 | Black nickel-plated | 10 | 16 | 32.0 | Čas dobave: Predvidoma 3 - 5 dni | ? | Povpraševanje | |
115929RIE | G 1/8 | Hostaform | 4 | 9 | 26.5 | Čas dobave: Predvidoma 3 - 5 dni | 2,48 € | |
Opis
Straight screw-on fitting »value line«, G 1/8 i., for hose exterior Ø 4 mm, Working pressure -0.98 to 16 bar, nickel-plated brass
Low-priced yet very high-quality series of push-in fittings made of nickel-plated brass.
Compact, space-saving, lightweight design. An O-ring in the fillet at the end of the thread guarantees a tight connection for all male thread parts, even on rough surfaces.
Tehnični podatki in specifikacije
Serija | value line |
Min. delovni tlak [bar] | -0.98 |
Max. delovni tlak [bar] | 16 |
Min. delovna temperatura [°C] | -20 |
Max. delovna temperatura [°C] | 80 |
Tesnilo | NBR, silicone-free |
Priporočena cev | PA, PU |
Vpenjalo | Stainless steel AISI 316 |
Rokav | Hostaform |
Navoj | G 1/8 |
Za cevi O.D. [mm] | 4 |

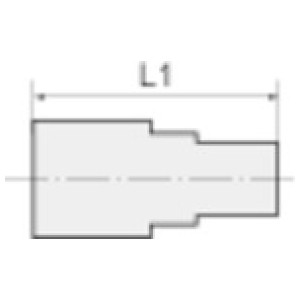

L1 [mm] | 26.5 |
a/f [mm] | 9 |
Material | Nickel-plated brass |
