* slike so simbolične

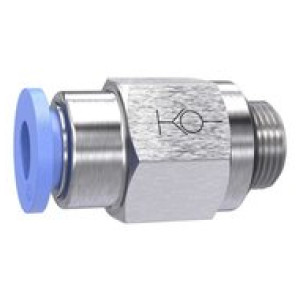

Ravni Vtični fiting »blue serija«, samozaporni, G 1/2 o.
SKU: 151449RIE
EAN: 4047322593052
Straight Push-in fitting »Blue Series«, Self-locking, G 1/2 o., for hose exterior Ø 12 mm, pmax 10 barThe air supply is completely shut off as soon as the hose is disconnected from the union.
The flow rate is only guaranteed if the hose is securely inserted.
Čas dobave 3 - 5 dni
11,93 €
| Šifra | Navoj | Za cevi O.D. [mm] | a/f [mm] | L1 [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|
| 151439 | G 1/8 | 4 | 12 | 24.5 | Čas dobave 3 - 5 dni | 6,03 € |  | |
| 151441 | G 1/8 | 8 | 14 | 31.5 | Čas dobave 3 - 5 dni | 7,82 € | | |
| 151448 | G 1/2 | 10 | 19 | 35.0 | Čas dobave 3 - 5 dni | 11,00 € | | |
| 151445 | G 3/8 | 8 | 17 | 33.5 | Čas dobave 3 - 5 dni | 9,64 € | | |
| 151444 | G 1/4 | 10 | 17 | 35.0 | Čas dobave 3 - 5 dni | 9,64 € | | |
| 151442 | G 1/4 | 6 | 14 | 27.5 | Čas dobave 3 - 5 dni | 7,12 € | | |
| 151447 | G 3/8 | 12 | 21 | 36.5 | Čas dobave 3 - 5 dni | 11,58 € | | |
| 151446 | G 3/8 | 10 | 20 | 35.0 | Čas dobave 3 - 5 dni | 9,99 € | | |
| 151440 | G 1/8 | 6 | 14 | 27.5 | Čas dobave 3 - 5 dni | 6,11 € | | |
| 151443 | G 1/4 | 8 | 14 | 33.5 | Čas dobave 3 - 5 dni | 7,82 € | | |
| 151449 | G 1/2 | 12 | 21 | 36.5 | Čas dobave 3 - 5 dni | 11,93 € | |
Opis
The air supply is completely shut off as soon as the hose is disconnected from the union.
The flow rate is only guaranteed if the hose is securely inserted.
Tehnični podatki in specifikacije
| Serija | Blue series |
| Max. delovni tlak [bar] | 10 |
| Max. temperaturno območje [°C] | 60 |
| Tesnilo | NBR |
| Srednje | Compressed air |
| Priporočena cev | PU or PA (nylon) |
| Rokav | Plastic blue |
| Navoj | G 1/2 |
| Za cevi O.D. [mm] | 12 |
| L1 [mm] | 36.5 |
| a/f [mm] | 21 |
| Standardni navoj | DIN EN ISO 228-1 |
| Material | Plastic and nickel-plated brass |
