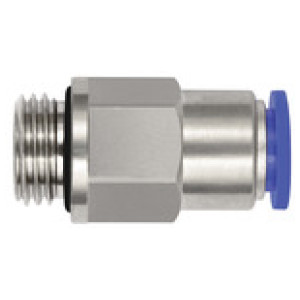

Ravni Vtični fiting »blue serija« samozaporni, G 1/4 o.
SKU: 151341RIE
EAN: 4047322591874
Straight Push-in fitting »Blue Series« Self-locking, G 1/4 o., for hose exterior Ø 10 mm, pmax 10 barThe air supply is completely shut off as soon as the hose is disconnected from the union.
The flow rate is only guaranteed if the hose is securely inserted.
Čas dobave: Predvidoma 3 - 5 dni
Povpraševanje
Ravni Vtični fiting »blue serija« samozaporni, G 1/4 o.
Material: Plastic and nickel-plated brass
Navoj: G 1/4
Priporočena cev: PU or PA (nylon)
Rokav: Plastic blue
Serija: Blue series
Srednje: Compressed air
Standardni navoj: DIN EN ISO 228-1
Navoj: G 1/4
Priporočena cev: PU or PA (nylon)
Rokav: Plastic blue
Serija: Blue series
Srednje: Compressed air
Standardni navoj: DIN EN ISO 228-1
| Šifra | Za cevi O.D. [mm] | a/f [mm] | L1 [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|
| 151341RIE | 10 | 17 | 34.9 | Čas dobave: Predvidoma 3 - 5 dni | ? | Povpraševanje |  |
| 151340RIE | 8 | 15 | 31.9 | Čas dobave: Predvidoma 3 - 5 dni | ? | Povpraševanje | |
Opis
The air supply is completely shut off as soon as the hose is disconnected from the union.
The flow rate is only guaranteed if the hose is securely inserted.
Tehnični podatki in specifikacije
| Serija | Blue series |
| Max. delovni tlak [bar] | 10 |
| Max. temperaturno območje [°C] | 60 |
| Srednje | Compressed air |
| Priporočena cev | PU or PA (nylon) |
| Rokav | Plastic blue |
| Navoj | G 1/4 |
| Za cevi O.D. [mm] | 10 |
| L1 [mm] | 34.9 |
| a/f [mm] | 17 |
| Standardni navoj | DIN EN ISO 228-1 |
| Material | Plastic and nickel-plated brass |
