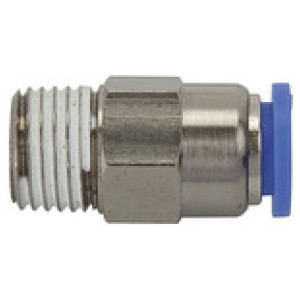

Ravni Vtični fiting »blue serija«, samozaporni, R 1/2 o.
SKU: 110180RIE
EAN: 4047322266994

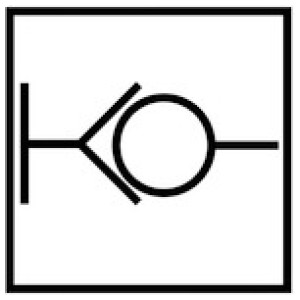

Straight Push-in fitting »Blue Series«, Self-locking, R 1/2 o., for hose exterior Ø 10 mm, pmax 10 barThe air supply is completely shut off as soon as the hose is disconnected from the union.
The flow rate is only guaranteed if the hose is securely inserted.
Čas dobave 3 - 5 dni
15,09 €
| Šifra | Navoj | Za cevi O.D. [mm] | a/f [mm] | L1 [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|
| 110174RIE | R 1/4 | 6 | 14 | 27.0 | Čas dobave 3 - 5 dni | ? | Povpraševanje |  |
| 110172RIE | R 1/8 | 6 | 12 | 27.0 | Čas dobave 3 - 5 dni | ? | Povpraševanje | |
| 110176RIE | R 1/4 | 10 | 17 | 37.0 | Čas dobave 3 - 5 dni | ? | Povpraševanje | |
| 110178RIE | R 3/8 | 10 | 17 | 37.0 | Čas dobave 3 - 5 dni | ? | Povpraševanje | |
| 110180RIE | R 1/2 | 10 | 21 | 37.0 | Čas dobave 3 - 5 dni | 15,09 € | | |
| 110175RIE | R 1/4 | 8 | 14 | 29.0 | Čas dobave 3 - 5 dni | ? | Povpraševanje | |
| 110173RIE | R 1/8 | 8 | 14 | 29.0 | Čas dobave 3 - 5 dni | 7,20 € | | |
| 110171RIE | R 1/8 | 4 | 10 | 27.5 | Čas dobave 3 - 5 dni | ? | Povpraševanje | |
| 110177RIE | R 3/8 | 8 | 17 | 29.0 | Čas dobave 3 - 5 dni | 9,47 € | |
Opis
The air supply is completely shut off as soon as the hose is disconnected from the union.
The flow rate is only guaranteed if the hose is securely inserted.
Tehnični podatki in specifikacije
| Serija | Blue series |
| Max. delovni tlak [bar] | 10 |
| Max. temperaturno območje [°C] | 60 |
| Srednje | Compressed air |
| Priporočena cev | PU or PA (nylon) |
| Rokav | Plastic blue |
| Navoj | R 1/2 |
| Za cevi O.D. [mm] | 10 |
| L1 [mm] | 37.0 |
| a/f [mm] | 21 |
| Standardni navoj | ISO 7-1 |
| Material | Plastic and nickel-plated brass |
