* slike so simbolične

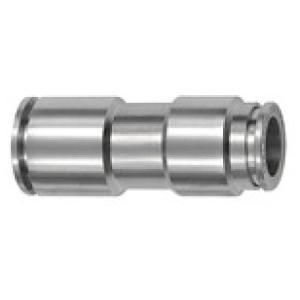

Ravni vtični konekt. rdeča. Metallica, cev zunanja Ø 10/8
SKU: 108974RIE
EAN: 4047322390828
Straight push-in connector reducing »metallica«, for hose exterior Ø 10/8, Working pressure -0.98 to 16 bar, nickel-plated brass
"All parts with a parallel thread are supplied with an FPM O-ring while the conical threads are coated with preCOTE 5 dispersion
Čas dobave: Predvidoma 3 - 5 dni
6,81 €
| Šifra | Za cevi O.D. [mm] | L1 [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|
| 108972RIE | 6/4 | 33.0 | Čas dobave: Predvidoma 3 - 5 dni | 4,22 € |  | |
| 108975RIE | 12/10 | 42.5 | Čas dobave: Predvidoma 3 - 5 dni | 8,71 € | | |
| 108973RIE | 8/6 | 39.0 | Čas dobave: Predvidoma 3 - 5 dni | 6,23 € | | |
| 108974RIE | 10/8 | 39.0 | Čas dobave: Predvidoma 3 - 5 dni | 6,81 € | |
Opis
Straight push-in connector reducing »metallica«, for hose exterior Ø 10/8, Working pressure -0.98 to 16 bar, nickel-plated brass
"All parts with a parallel thread are supplied with an FPM O-ring while the conical threads are coated with preCOTE 5 dispersion
Tehnični podatki in specifikacije
| Serija | metallica |
| Min. delovni tlak [bar] | -0.98 |
| Max. delovni tlak [bar] | 16 |
| Min. delovna temperatura [°C] | -20 |
| Max. delovna temperatura [°C] | 150 |
| Priporočena cev | PA and PU |
| Rokav | Nickel-plated brass |
| Vpenjalni obroč | Reducer |
| Za cevi O.D. [mm] | 10/8 |
| L1 [mm] | 39.0 |
| Material | Nickel-plated brass |
