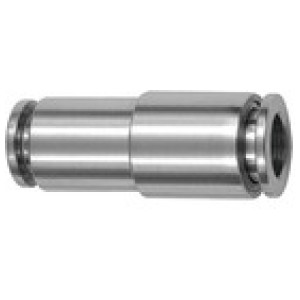

Ravni vtični konekt., , zunanja premera 6/4 mm
SKU: 135249RIE
EAN: 4047322494540
Straight push-in connector, reducing, for hose exterior Ø 6/4 mm, Working pressure -0.98 - 20 bar, Stainless steel 1.4404
For use in more aggressive environments and corrosive media.
The suitability test for the individual application is the user's responsibility.
Čas dobave: Predvidoma 3 - 5 dni
33,56 €
| Šifra | Za cevi O.D. [mm] | L1 [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|
| 135254RIE | 16/12 | 39.4 | Čas dobave: Predvidoma 3 - 5 dni | 104,77 € |  | |
| 135250RIE | 8/6 | 36.0 | Čas dobave: Predvidoma 3 - 5 dni | 34,68 € | | |
| 135252RIE | 12/10 | 37.4 | Čas dobave: Predvidoma 3 - 5 dni | 73,47 € | | |
| 135253RIE | 14/12 | 39.8 | Čas dobave: Predvidoma 3 - 5 dni | 91,62 € | | |
| 135251RIE | 10/8 | 36.0 | Čas dobave: Predvidoma 3 - 5 dni | 54,88 € | | |
| 135249RIE | 6/4 | 35.5 | Čas dobave: Predvidoma 3 - 5 dni | 33,56 € | |
Opis
Straight push-in connector, reducing, for hose exterior Ø 6/4 mm, Working pressure -0.98 - 20 bar, Stainless steel 1.4404
For use in more aggressive environments and corrosive media.
The suitability test for the individual application is the user's responsibility.
Tehnični podatki in specifikacije
| Min. delovni tlak [bar] | -0.98 |
| Max. delovni tlak [bar] | 20 |
| Min. delovna temperatura [°C] | -20 |
| Max. delovna temperatura [°C] | 150 |
| Delovni tlak pulzira [bar] | 10 |
| Min. temperatura medija [°C] | -20 |
| Max. temperatura medija [°C] | 150 |
| Primerni materiali za cevi | PVDF, PTFE, PA, PU |
| Za cevi O.D. [mm] | 6/4 |
| L1 [mm] | 35.5 |
| Material | Stainless steel 1.4404 |
