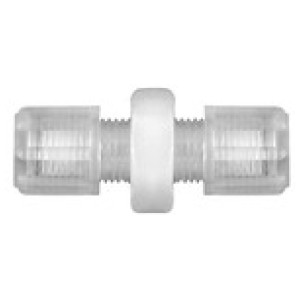

Ravni za cevni priključek, za za cev 4/6 mm, AF 14, PFA
SKU: 110927RIE
EAN: 4047322204743
Straight hose connection, for hose 4/6 mm, AF 14, Working pressure max. 10 bar (20 °C)/max. 1 bar (170 °C), PFA
Perfluoroalkoxy alkane (PFA): A fluoroplastic with the same chemical resistance as PTFE but much stronger and suitable for temperatures up to 200°C.
Čas dobave: Predvidoma 3 - 5 dni
42,66 €
| Šifra | Za cevi [mm] | a/f [mm] | L1 [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|
| 110928RIE | 6/8 | 19 | 49.0 | Čas dobave: Predvidoma 3 - 5 dni | 73,48 € |  | |
| 110929RIE | 8/10 | 22 | 55.0 | Čas dobave: Predvidoma 3 - 5 dni | 79,93 € | | |
| 110927RIE | 4/6 | 14 | 39.0 | Čas dobave: Predvidoma 3 - 5 dni | 42,66 € | | |
| 110930RIE | 9/12 | 24 | 64.0 | Čas dobave: Predvidoma 3 - 5 dni | 92,24 € | |
Opis
Straight hose connection, for hose 4/6 mm, AF 14, Working pressure max. 10 bar (20 °C)/max. 1 bar (170 °C), PFA
Perfluoroalkoxy alkane (PFA): A fluoroplastic with the same chemical resistance as PTFE but much stronger and suitable for temperatures up to 200°C.
Tehnični podatki in specifikacije
| Max. delovni tlak pri 20 ° C [bar] | 10 |
| Max. delovna temperatura [°C] | 200 |
| Max. delovni tlak od 170 ° C [bar] | 1 |
| Za cevi [mm] | 4/6 |

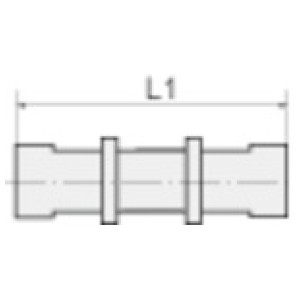

| L1 [mm] | 39.0 |
| a/f [mm] | 14 |
| Material | Perfluoroalkoxy alkane (PFA) |
