* slike so simbolične
Razdelilnik, 3 izhodni, vhod 2x1 1/4, izhod 3x1/2 IT,
SKU: 112571RIE
EAN: 4047322169769

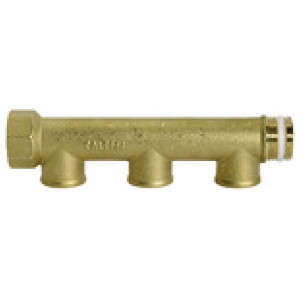

Distributor pipe, 3 outlets, Input 2 x 1 1/4 without sealing ring, Output 3 x 1/2 interior thread, Brass
For assembling compressed air taps.
End fittings with 1 x male and 1 x female thread, outlets optionally with male or female thread.
Čas dobave: Predvidoma 3 - 5 dni
40,86 €

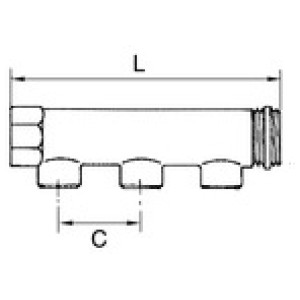

| Šifra | Tesnilo | Vhod | Izhod | C [mm] | L [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|
| 112571RIE | without sealing ring | 2 x 1 1/4 | 3 x 1/2 IT | 60.0 | 197.0 | Čas dobave: Predvidoma 3 - 5 dni | 40,86 € |  | |
| 112569RIE | incl. sealing ring (PTFE) on ET | 2 x 1 | 3 x 1/2 IT | 50.0 | 163.0 | Čas dobave: Predvidoma 3 - 5 dni | 35,61 € | | |
| 112566RIE | incl. sealing ring (PTFE) on ET | 2 x 3/4 | 3 x 1/2 ET | 50.0 | 160.0 | Čas dobave: Predvidoma 3 - 5 dni | 28,45 € | | |
| 112570RIE | without sealing ring | 2 x 1 1/4 | 3 x 1/2 ET | 60.0 | 197.0 | Čas dobave: Predvidoma 3 - 5 dni | 40,86 € | | |
| 112568RIE | incl. sealing ring (PTFE) on ET | 2 x 1 | 3 x 1/2 ET | 50.0 | 163.0 | Čas dobave: Predvidoma 3 - 5 dni | 35,61 € | | |
| 112567RIE | incl. sealing ring (PTFE) on ET | 2 x 3/4 | 3 x 1/2 IT | 50.0 | 160.0 | Čas dobave: Predvidoma 3 - 5 dni | 28,45 € | |
Opis
Distributor pipe, 3 outlets, Input 2 x 1 1/4 without sealing ring, Output 3 x 1/2 interior thread, Brass
For assembling compressed air taps.
End fittings with 1 x male and 1 x female thread, outlets optionally with male or female thread.
Tehnični podatki in specifikacije
| Max. obratovalni tlak [bar] | 10 |
| Tesnilo | without sealing ring |
| L [mm] | 197.0 |
| C [mm] | 60.0 |
| Vhod | 2 x 1 1/4 |
| Izhod | 3 x 1/2 IT |
