Razdelilnik, 4 izhodni, vhod 2x1 1/4, izhod 4x1/2 ET
SKU: 112576RIE
EAN: 4047322385145

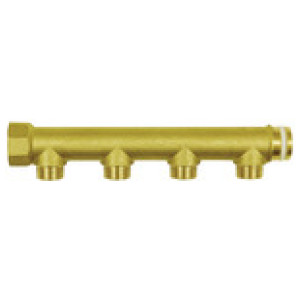

Distributor pipe, 4 outlets, Input 2 x 1 1/4 without PTFE sealing ring, Output 4 x 1/2 exterior thread, Brass
For assembling compressed air taps.
End fittings with 1 x male and 1 x female thread, outlets optionally with male or female thread.
Čas dobave 3 - 5 dni
63,23 €
ali od 11,53 € / mesec
Izračunaj obrok
Obrestno financiranje
- 11,53 € x 6 mesecev
- 22,81 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.

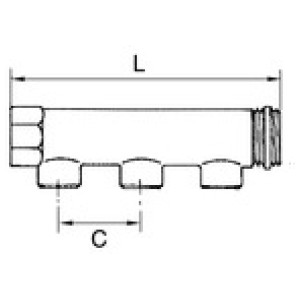

| Šifra | Tesnilo | Vhod | Izhod | C [mm] | L [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|
| 112577RIE | without sealing ring | 2 x 1 1/4 | 4 x 1/2 IT | 60.0 | 257.0 | Čas dobave 3 - 5 dni | 63,23 € |  | |
| 112572RIE | incl. sealing ring (PTFE) on ET | 2 x 3/4 | 4 x 1/2 ET | 50.0 | 210.0 | Čas dobave 3 - 5 dni | 34,29 € | | |
| 112575RIE | incl. sealing ring (PTFE) on ET | 2 x 1 | 4 x 1/2 IT | 50.0 | 213.0 | Čas dobave 3 - 5 dni | 44,10 € | | |
| 112576RIE | without sealing ring | 2 x 1 1/4 | 4 x 1/2 ET | 60.0 | 257.0 | Čas dobave 3 - 5 dni | 63,23 € | | |
| 112574RIE | incl. sealing ring (PTFE) on ET | 2 x 1 | 4 x 1/2 ET | 50.0 | 213.0 | Čas dobave 3 - 5 dni | 44,10 € | | |
| 112573RIE | incl. sealing ring (PTFE) on ET | 2 x 3/4 | 4 x 1/2 IT | 50.0 | 210.0 | Čas dobave 3 - 5 dni | 34,29 € | |
Opis
Distributor pipe, 4 outlets, Input 2 x 1 1/4 without PTFE sealing ring, Output 4 x 1/2 exterior thread, Brass
For assembling compressed air taps.
End fittings with 1 x male and 1 x female thread, outlets optionally with male or female thread.
Tehnični podatki in specifikacije
| Max. obratovalni tlak [bar] | 10 |
| Tesnilo | without sealing ring |
| L [mm] | 257.0 |
| C [mm] | 60.0 |
| Vhod | 2 x 1 1/4 |
| Izhod | 4 x 1/2 ET |
