Razdelilnik »G-mali«, z 2 vtičnicama, Velikost 200, G 1/8
SKU: 116472RIE
EAN: 4047322309028

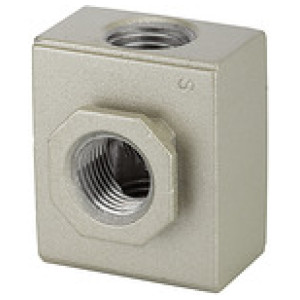

Distributor »G-mini«, with 2 outlets, Size 200, G 1/8, Input pressure 0 - 9 bar, Medium / ambient temperature max. 70 °C
Two-way manifolds - narrow design, with one outlet at the top and one outlet at the bottom or one outlet in front and one outlet behind.
Čas dobave: Predvidoma 3 - 5 dni
17,38 €
| Šifra | Navoj | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|
| 116472RIE | G 1/8 | Čas dobave: Predvidoma 3 - 5 dni | 17,38 € |  | |
| 116473RIE | G 1/4 | Čas dobave: Predvidoma 3 - 5 dni | 17,38 € | |
Opis
Distributor »G-mini«, with 2 outlets, Size 200, G 1/8, Input pressure 0 - 9 bar, Medium / ambient temperature max. 70 °C
Two-way manifolds - narrow design, with one outlet at the top and one outlet at the bottom or one outlet in front and one outlet behind.
Tehnični podatki in specifikacije
| Navoj | G 1/8 |
| Max. vhodni tlak [bar] | 9 |
| Velikost | 200 |
| Ohišje | Die-cast aluminium |
| Max. temperatura medija [°C] | 70 |
| Max. sobna temperatura [°C] | 70 |
| A [mm] | 28.5 |
| B [mm] | 36.0 |
| C [mm] | 18.0 |
| D [mm] | 18.0 |
| Serija | G-mini |
