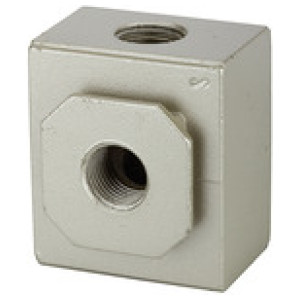

Razdelilnik »G«, z 2 vtičnicama, Velikost 300, G 3/8
SKU: 116475RIE
EAN: 4047322308861
Distributor »G«, with 2 outlets, Size 300, G 3/8, Input pressure 0 - 9 bar, Medium / ambient temperature max. 70 °C
Two-way manifolds - narrow design, with one outlet at the top and one outlet at the bottom or one outlet in front and one outlet behind.

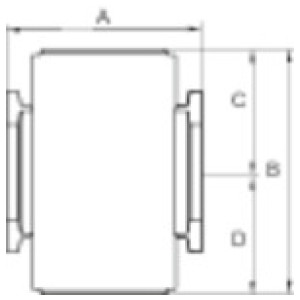

Šifra | Navoj | C [mm] | D [mm] | A [mm] | B [mm] | Velikost | Zaloga | Cena | Nakup | Natisni |
---|---|---|---|---|---|---|---|---|---|---|
116474RIE | G 1/4 | 22.0 | 22.0 | 35.0 | 44.0 | 300 | Čas dobave: Predvidoma 3 - 5 dni | 27,19 € | | |
116477RIE | G 1/2 | 26.0 | 26.0 | 42.0 | 52.0 | 400 | Čas dobave: Predvidoma 3 - 5 dni | 32,99 € | | |
116478RIE | G 3/4 | 38.0 | 38.0 | 60.0 | 76.0 | 600 | Čas dobave: Predvidoma 3 - 5 dni | 87,41 € | | |
116479RIE | G 1 | 38.0 | 38.0 | 60.0 | 76.0 | 600 | Čas dobave: Predvidoma 3 - 5 dni | 87,41 € | | |
116476RIE | G 3/8 | 26.0 | 26.0 | 42.0 | 52.0 | 400 | Čas dobave: Predvidoma 3 - 5 dni | 32,99 € | | |
116475RIE | G 3/8 | 22.0 | 22.0 | 35.0 | 44.0 | 300 | Čas dobave: Predvidoma 3 - 5 dni | 27,19 € | |
Opis
Distributor »G«, with 2 outlets, Size 300, G 3/8, Input pressure 0 - 9 bar, Medium / ambient temperature max. 70 °C
Two-way manifolds - narrow design, with one outlet at the top and one outlet at the bottom or one outlet in front and one outlet behind.
Tehnični podatki in specifikacije
Navoj | G 3/8 |
Max. vhodni tlak [bar] | 9 |
Velikost | 300 |
Ohišje | Die-cast aluminium |
Tesnilo | NBR |
Max. temperatura medija [°C] | 70 |
Max. sobna temperatura [°C] | 70 |
A [mm] | 35.0 |
B [mm] | 44.0 |
C [mm] | 22.0 |
D [mm] | 22.0 |
Serija | G |
