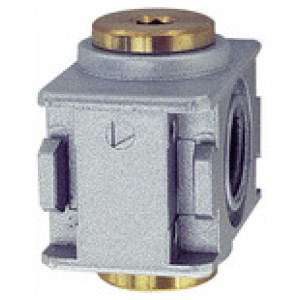

Razdelilnik »multifix-mali«Vel. 0G 1/4z 2 vtičnicama G 1/8
SKU: 100402RIE
EAN: 4047322174299
Distributor »multifix-mini«, Size 0, G 1/4, with 2 outlets G 1/8, Input pressure max. 16 bar, Medium / ambient temp. max. 60 °C
Narrow, two-way manifold with two G 1/8 outlets.
Čas dobave: Predvidoma 3 - 5 dni
Povpraševanje
Razdelilnik »multifix-mali«Vel. 0G 1/4z 2 vtičnicama G 1/8
Merjenje pretoka: At P1 = 6 bar and pressure drop Δp = 1 bar
Navoj: G 1/4
Ohišje: Die-cast zinc
Pretok [l/min]: P ? A 2700 l/min, P ? B and P ? C 1300
Serija: multifix-mini
Navoj: G 1/4
Ohišje: Die-cast zinc
Pretok [l/min]: P ? A 2700 l/min, P ? B and P ? C 1300
Serija: multifix-mini
| Šifra | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|
| 100402RIE | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje |  |
Opis
Distributor »multifix-mini«, Size 0, G 1/4, with 2 outlets G 1/8, Input pressure max. 16 bar, Medium / ambient temp. max. 60 °C
Narrow, two-way manifold with two G 1/8 outlets.
Tehnični podatki in specifikacije
| Navoj | G 1/4 |
| Max. vhodni tlak [bar] | 16 |
| Tesnilo | NBR |
| Max. temperatura medija [°C] | 60 |
| Max. sobna temperatura [°C] | 60 |

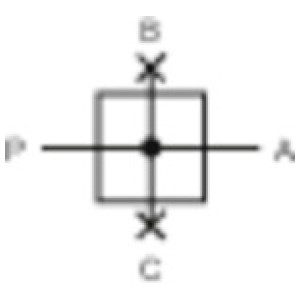

| Pretok [l/min] | P ? A 2700 l/min, P ? B and P ? C 1300 |
| Ohišje | Die-cast zinc |
| A [mm] | 23.0 |
| B [mm] | 36.0 |
| C [mm] | 18.0 |
| D [mm] | 18.0 |
| Serija | multifix-mini |
| Merjenje pretoka | At P1 = 6 bar and pressure drop Δp = 1 bar |
