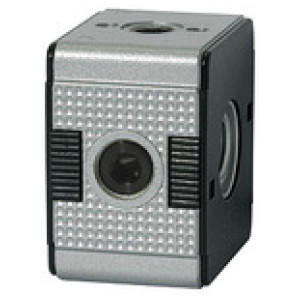

Razdelilnik »multifix«, Ozka izvedba, Velikost 3, G 1/2, 4 Izhodi
SKU: 100606RIE
EAN: 4047322174312
Distributor »multifix«, Narrow design, Size 3, G 1/2, with 4 outlets: 1 x G 3/8, 2 x G 1/4, 1 x G 1/8, Input pressure max. 16 bar
Wide or narrow, four-way manifolds.
Čas dobave 3 - 5 dni
38,50 €
| Šifra | Navoj | Velikost | Odtok | C [mm] | A [mm] | B [mm] | Pretok [l/min] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 100605RIE | G 1/4 | 1 | 3 x 1/4, 1 x 1/8 | 26.0 | 34.8 | 52.0 | 3300 | Čas dobave 3 - 5 dni | 34,94 € |  | |
| 100606RIE | G 1/2 | 3 | 1 x 3/8, 2 x 1/4, 1 x 1/8 | 33.5 | 38.8 | 67.0 | 11000 | Čas dobave 3 - 5 dni | 38,50 € | |
Opis
Distributor »multifix«, Narrow design, Size 3, G 1/2, with 4 outlets: 1 x G 3/8, 2 x G 1/4, 1 x G 1/8, Input pressure max. 16 bar
Wide or narrow, four-way manifolds.
Tehnični podatki in specifikacije
| Navoj | G 1/2 |
| Max. vhodni tlak [bar] | 16 |
| Velikost | 3 |
| Tesnilo | NBR |
| Max. temperatura medija [°C] | 60 |
| Max. sobna temperatura [°C] | 60 |
| Pretok [l/min] | 11000 |
| Odtok | 1 x 3/8, 2 x 1/4, 1 x 1/8 |
| Ohišje | Die-cast zinc |

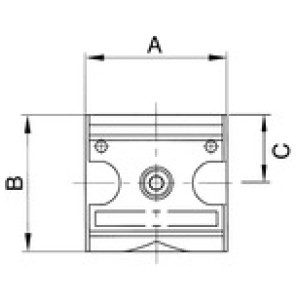

| A [mm] | 38.8 |
| B [mm] | 67.0 |
| C [mm] | 33.5 |
| Serija | multifix |
| Merjenje pretoka | At P1 = 6 bar and pressure drop Δp = 1 bar |
