* slike so simbolične

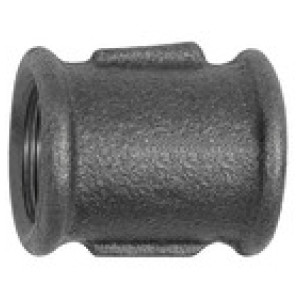

Red. objemka 270-okroglaN.N./N.N.Rp 3/8črn
SKU: 133718RIE
EAN: 4047322481694
Bushing 270, IT/IT, Rp 3/8, black malleable iron fitting, Operating temp. -20 °C to 300 °C, ISO 7-1
According to DIN EN 10242 (previously 2950).
Malleable iron cast fittings in black steel, non-galvanized, is the classic fitting series in connection series in piping construction. Our malleable iron cast fittings are characterized by high mechanical strength and standardized fitting technology.
Working minimal temperature = -20 °C, 25 bar.
Working pressure for temperature range from -20 °C to 120 °C: 25 bar.
Working pressure for temperature range from 120 °C to 300 °C: 20-25 bar.
| Šifra | Navoj | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|
| 133726RIE | Rp 3 | Čas dobave: Predvidoma 3 - 5 dni | 29,69 € |  | |
| 133719RIE | Rp 1/2 | Čas dobave: Predvidoma 3 - 5 dni | 1,50 € | | |
| 133717RIE | Rp 1/4 | Čas dobave: Predvidoma 3 - 5 dni | 1,74 € | | |
| 133720RIE | Rp 3/4 | Čas dobave: Predvidoma 3 - 5 dni | 2,07 € | | |
| 133721RIE | Rp 1 | Čas dobave: Predvidoma 3 - 5 dni | 2,78 € | | |
| 133723RIE | Rp 1 1/2 | Čas dobave: Predvidoma 3 - 5 dni | 5,93 € | | |
| 133722RIE | Rp 1 1/4 | Čas dobave: Predvidoma 3 - 5 dni | 4,47 € | | |
| 133725RIE | Rp 2 1/2 | Čas dobave: Predvidoma 3 - 5 dni | 24,05 € | | |
| 133724RIE | Rp 2 | Čas dobave: Predvidoma 3 - 5 dni | 8,91 € | | |
| 133718RIE | Rp 3/8 | Čas dobave: Predvidoma 3 - 5 dni | 1,71 € | |
Opis
Bushing 270, IT/IT, Rp 3/8, black malleable iron fitting, Operating temp. -20 °C to 300 °C, ISO 7-1
According to DIN EN 10242 (previously 2950).
Malleable iron cast fittings in black steel, non-galvanized, is the classic fitting series in connection series in piping construction. Our malleable iron cast fittings are characterized by high mechanical strength and standardized fitting technology.
Working minimal temperature = -20 °C, 25 bar.
Working pressure for temperature range from -20 °C to 120 °C: 25 bar.
Working pressure for temperature range from 120 °C to 300 °C: 20-25 bar.
Tehnični podatki in specifikacije
| Min. temperaturno območje [°C] | -20 |
| Max. temperaturno območje [°C] | 300 |
| Material | Black malleable iron B350-10, design symbol A |
| Površina | Black |
| Navoj | Rp 3/8 |
| Standardni navoj | acc. ISO 7-1 |
