Reducirni priklj.,R 1 o.G 1/2 i.dolž. 34,poniklj. Med.
SKU: 111348RIE
EAN: 4047322273145

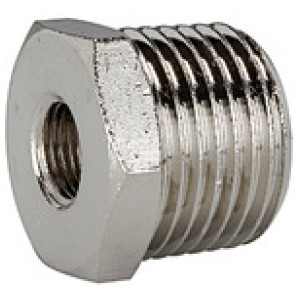

Reducing nipple, R 1 o., G 1/2 i., AF 34, nickel-plated brass, Max. working pressure 25 bar, Max. operating temperature 150 °C
Suitable for air, water, oil, steam, etc.
Čas dobave: Predvidoma 3 - 5 dni
7,75 €

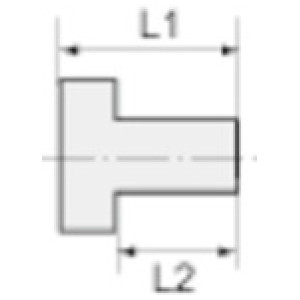

| Šifra | Notranji navoj | Zunanji navoj | L2 [mm] | L1 [mm] | a/f [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|
| 111345RIE | G 3/8 | R 1/2 | 14.0 | 20.0 | 22 | Čas dobave: Predvidoma 3 - 5 dni | 2,85 € |  | |
| 111347RIE | G 1/2 | R 3/4 | 16.5 | 23.0 | 27 | Čas dobave: Predvidoma 3 - 5 dni | 5,01 € | | |
| 111344RIE | G 1/4 | R 1/2 | 14.0 | 20.0 | 22 | Čas dobave: Predvidoma 3 - 5 dni | 2,79 € | | |
| 111340RIE | G 1/8 | R 1/4 | 11.0 | 16.0 | 14 | Čas dobave: Predvidoma 3 - 5 dni | 1,20 € | | |
| 111343RIE | G 1/8 | R 1/2 | 14.0 | 19.5 | 22 | Čas dobave: Predvidoma 3 - 5 dni | 2,79 € | | |
| 111349RIE | G 3/4 | R 1 | 18.0 | 25.0 | 34 | Čas dobave: Predvidoma 3 - 5 dni | 10,49 € | | |
| 111341RIE | G 1/8 | R 3/8 | 11.5 | 17.0 | 17 | Čas dobave: Predvidoma 3 - 5 dni | 1,51 € | | |
| 111342RIE | G 1/4 | R 3/8 | 11.5 | 17.0 | 17 | Čas dobave: Predvidoma 3 - 5 dni | 1,62 € | | |
| 111346RIE | G 3/8 | R 3/4 | 16.5 | 23.0 | 27 | Čas dobave: Predvidoma 3 - 5 dni | 4,77 € | | |
| 111348RIE | G 1/2 | R 1 | 16.0 | 25.0 | 34 | Čas dobave: Predvidoma 3 - 5 dni | 7,75 € | |
Opis
Reducing nipple, R 1 o., G 1/2 i., AF 34, nickel-plated brass, Max. working pressure 25 bar, Max. operating temperature 150 °C
Suitable for air, water, oil, steam, etc.
Tehnični podatki in specifikacije
| Max. delovni tlak [bar] | 25 |
| Max. delovna temperatura [°C] | 150 |
| Material | Nickel-plated brass CW614N |
| Notranji navoj | G 1/2 |
| Zunanji navoj | R 1 |
| L1 [mm] | 25.0 |
| L2 [mm] | 16.0 |
| a/f [mm] | 34 |
