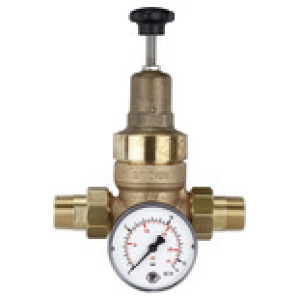

Regulator tlaka za pitno vodo, brez DVGW, R 1/2
SKU: 101327RIE
EAN: 4047322274517
Pressure regulator for potable water, without DVGW, pressure gauge, R 1/2, Control range 1.5 - 12 bar, Input pressure max. 25 bar
Pressure regulator with pressure-reduced single-seated piston valve or single-seated diaphragm valve and built-in strainer. Specially designed for use with water.
The device is also suitable for all other applications involving neutral non-sticky liquids, air and neutral non-flammable gases.
Povpraševanje
Notranji deli: Plastic, brass, stainless steel
Ohišje: Bronze (Rg5)
Tesnilo: NBR-SBR
Vzmet pokrova motorja: Hot-pressed brass

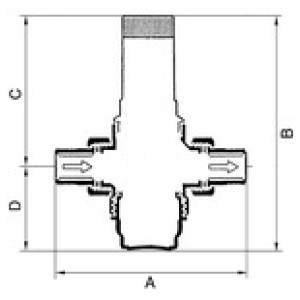

A [mm]: 137.0
C [mm]: 150.0
B [mm]: 177.0
| Šifra | Navoj | Vzmet pokrova motorja | Pretok KVS vrednost [m³/h] | DN | D [mm] | A [mm] | C [mm] | B [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 101330RIE | R 1 1/4 | Hot-pressed brass | 6.1 | 32 | 47.0 | 177.2 | 187.0 | 234.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje |  |
| 101331RIE | R 1 1/2 | Cast iron | 12 | 40 | 59.0 | 210.0 | 320.0 | 379.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 101332RIE | R 2 | Cast iron | 13 | 50 | 61.0 | 210.0 | 320.0 | 381.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 101329RIE | R 1 | Hot-pressed brass | 5.4 | 25 | 28.5 | 160.0 | 150.0 | 178.5 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 101328RIE | R 3/4 | Hot-pressed brass | 3.9 | 20 | 27.0 | 141.0 | 150.0 | 177.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 101327RIE | R 1/2 | Hot-pressed brass | 2.9 | 15 | 27.0 | 137.0 | 150.0 | 177.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
Opis
Pressure regulator for potable water, without DVGW, pressure gauge, R 1/2, Control range 1.5 - 12 bar, Input pressure max. 25 bar
Pressure regulator with pressure-reduced single-seated piston valve or single-seated diaphragm valve and built-in strainer. Specially designed for use with water.
The device is also suitable for all other applications involving neutral non-sticky liquids, air and neutral non-flammable gases.
Tehnični podatki in specifikacije
| Navoj | R 1/2 |
| Max. vhodni tlak [bar] | 25 |
| Max. delovna temperatura [°C] | 75 |
| Ohišje | Bronze (Rg5) |
| Tesnilo | NBR-SBR |
| Min. krmilno območje [bar] | 1.5 |
| Max. krmilno območje [bar] | 12 |
| A [mm] | 137.0 |
| B [mm] | 177.0 |
| C [mm] | 150.0 |
| D [mm] | 27.0 |
| Vzmet pokrova motorja | Hot-pressed brass |
| Pretok KVS vrednost [m³/h] | 2.9 |
| Notranji deli | Plastic, brass, stainless steel |
| Min. primarna (vstopni) tlak [bar] | 2.5 |
| Min. padec tlaka [bar] | 1 |
| DN | 15 |
